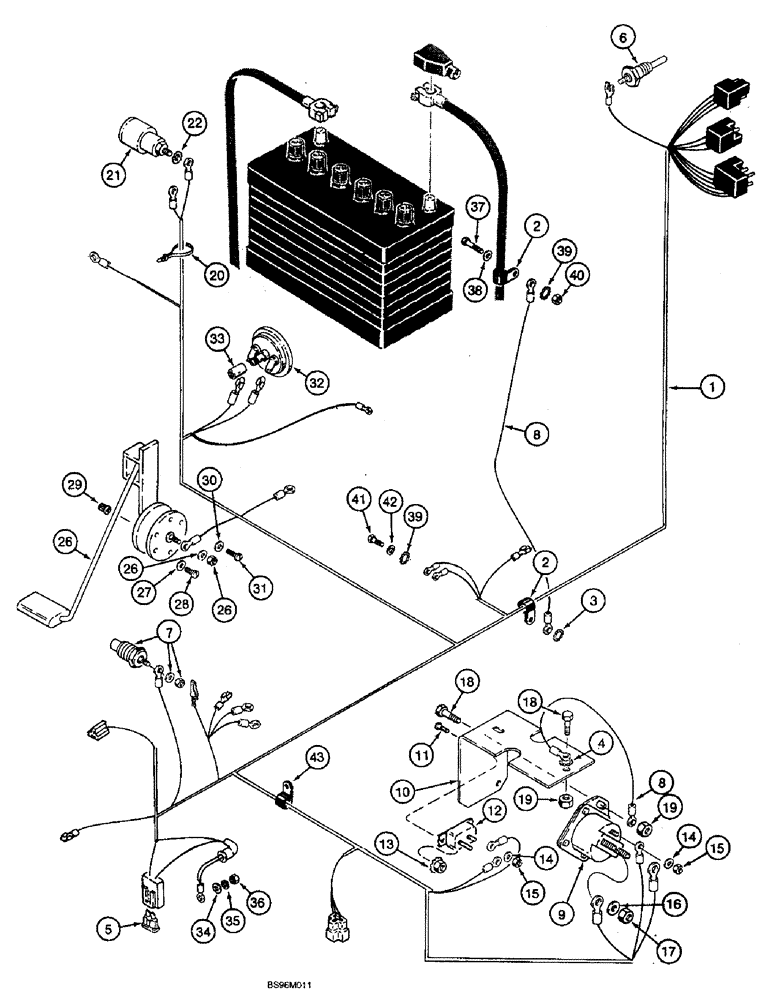

Запчасти Case IH 1825B (4-10) - HARNESS, REAR (04) - ELECTRICAL SYSTEMS

1

222980A1

HARNESS

1шт.

2

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

3

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

4

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

5

A149804

FUSE

30 ampere

1шт.

6

H439301

SWITCH

hydraulic oil temperature

1шт.

7

123632A1

TEMPERATURE SENDER

engine temp

1шт.

8

D87572

ELECTRICAL WIRE

WIRE

2шт.

9

A39079

SOLENOID

1шт.

10

D139859

MOUNTING PARTS

BRACKET

1шт.

11

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

2шт.

12

A22877

BREAKER,40A

40 amp

1шт.

13

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

14

495-31022

WASHER,#10

3шт.

15

225-14210

NUT,#10-32

3шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

1шт.

21

H436247

SWITCH, PRESSURE

PRESSURE SWITCH charge pump

1шт.

22

493-41017

LOCK WASHER,Ext, #8

No. 8

1шт.

26

D122404

SENDER UNIT

SENDER fuel gauge

1шт.

27

104812C3

GASKET,3.05mm Thk

mounting

1шт.

28

H435859

SCREW,#10 - 32 x 3/4"

4шт.

29

H435860

INSERT

5шт.

30

D83885

WASHER

1шт.

31

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

1шт.

32

1983233C1

RESTRICTION SWITCH

SWITCH, air cleaner service

1шт.

33

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

34

H426767

WASHER

if equipped

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

825-1406

NUT,M6, Cl 8

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

38

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

39

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

41

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

42

892-11008

LOCK WASHER,8mm ID

1шт.

43

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
