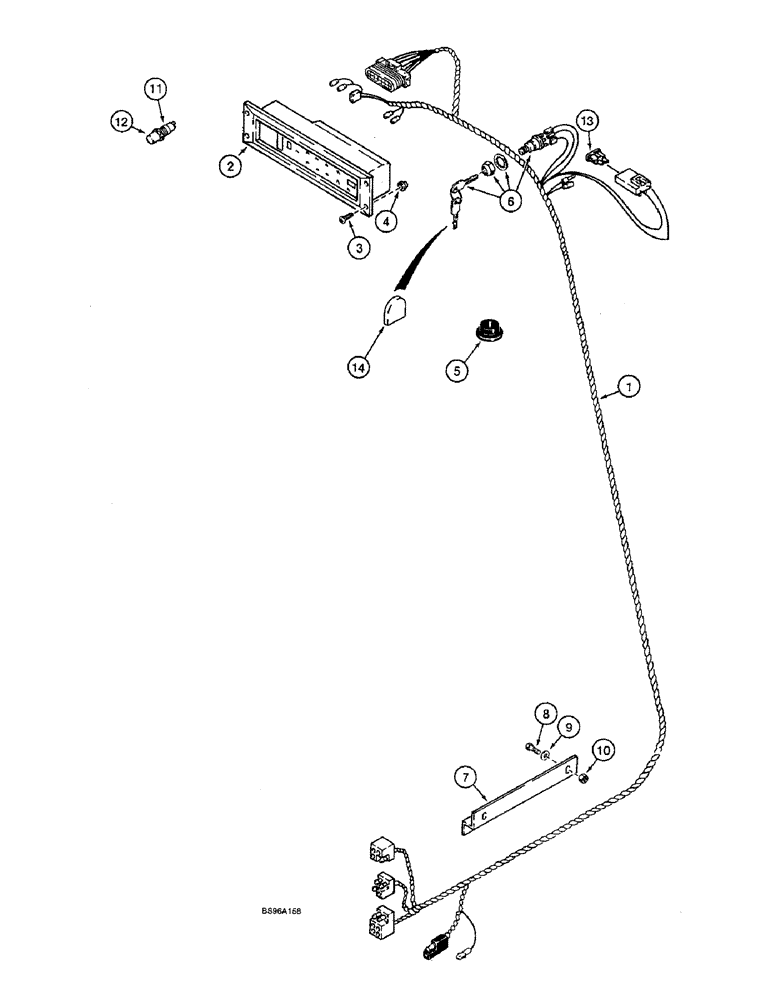

Запчасти Case IH 1825B (4-08) - HARNESS, FRONT (04) - ELECTRICAL SYSTEMS

1

131617A2

HARNESS

front

1шт.

2

H438453

PANEL, INSTRUMENTS

PANEL, INSTRUMENT CLUSTER

1шт.

3

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.

4

D122634

ISOLATOR,12.7mm OD x 14.1mm L

RETAINER

4шт.

5

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

6

3107556R92

SWITCH ASSY

Incl. keys

1шт.

7

D136931

ANGLE

COVER harness

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

H603852

LIGHT

LAMP ASSY, Incl. Ref. 12

1шт.

12

114323A1

LENS

red

1шт.

13

A149802

FUSE

20 amp

1шт.

14

124607A1

COVER

ignition key, German T.B.G. models

1шт.
