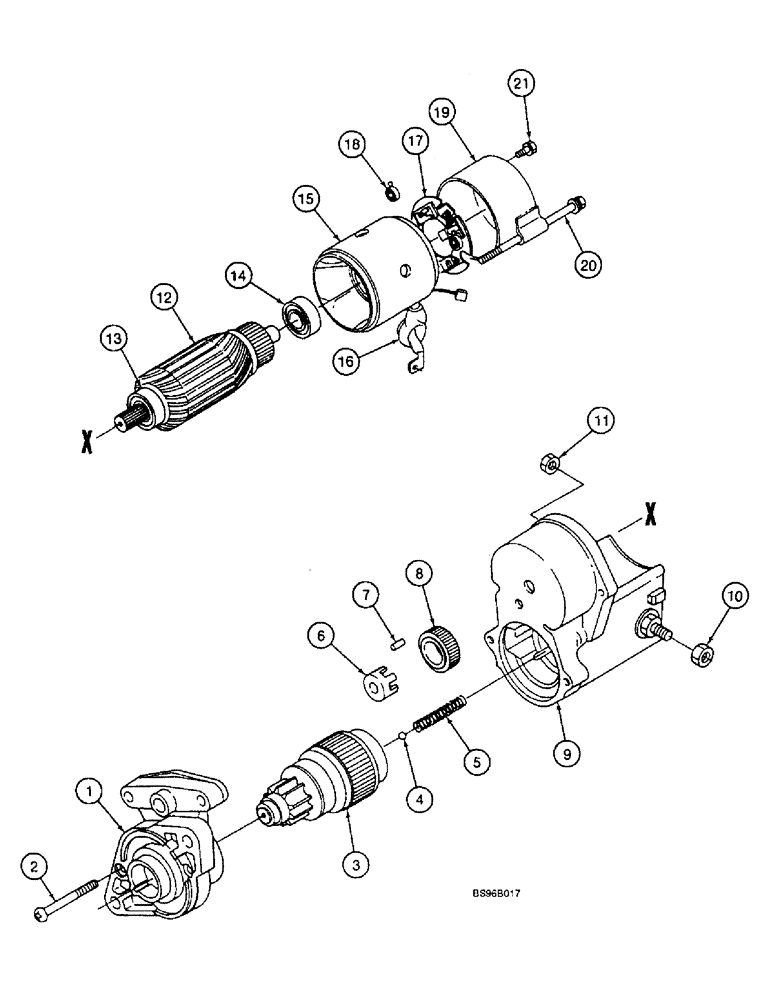

Запчасти Case IH 1825B (4-06) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

125442A1

STARTER MOTOR

ASSY, Incl. Ref. 1 - 25

1шт.

125442A1R

REMAN-STARTER

Remanufactured STARTER 12 volt, OSGR - For N.A. Only

1шт.

125442A1C

CORE-STARTER

Return Number, STARTER 12 volt, OSGR - For N.A. Only

1шт.

1

129520A1

BOX

1шт.

2

129533A1

SCREW

special

2шт.

3

129519A1

CONTROL

CLUTCH

1шт.

4

129531A1

BALL

1шт.

5

129532A1

SPRING

1шт.

6

129530A1

STOP

RETAINER

1шт.

7

129529A1

PIN

PIN roll

5шт.

8

129528A1

GEAR

GEAR

1шт.

9

129521A1

SWITCH ASSY

1шт.

10

129536A1

SPECIAL NUT

1шт.

11

129538A1

SPECIAL NUT

1шт.

12

129516A1

ROTOR

ARMATURE

1шт.

13

129517A1

BALL BEARING

1шт.

14

129518A1

BALL BEARING

1шт.

15

129515A1

BODY

YOKE

1шт.

16

129537A1

COVER

COVER

1шт.

17

129522A1

BRUSH HOLDER

1шт.

18

129523A1

SPRING

4шт.

19

129527A1

COVER

FRAME

1шт.

20

129534A1

BOLT

2шт.

21

129535A1

BOLT

2шт.

22

129539A1

O-RING

not illustrated

2шт.

23

129541A1

ELECTRIC CABLE

not illustrated

1шт.

24

129543A1

RIGID TUBE

not illustrated

1шт.

25

129544A1

GUARD

TRIM, not illustrated

1шт.
