(3-02) - FUEL FILTER AND CONNECTIONS

Запчасти Case IH 1825B (3-02) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM

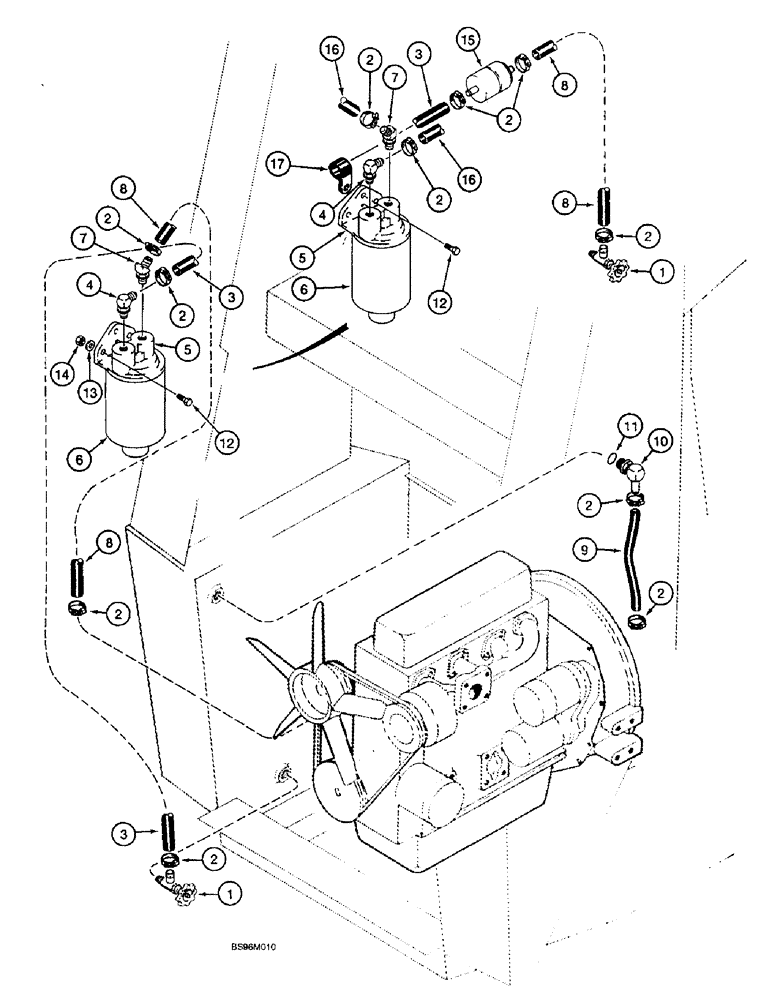

Схема запчастей Case IH 1825B - (3-02) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM
6
11
8
2
14
12
8
8
16
2
2
15
2
2
8
4
5
7
2
1
9
2
3
6
3
2
10
7
4
1
12
2
3
13
2
5
16
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A154051

COCK, DRAIN

valve

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

10шт.

3

D136265

HOSE,9.5 mm ID x 350.00 mm, SAE 30R7

Cut from 427683C1

1шт.

4

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT, 90°

1шт.

114545A1

FILTER ASSY

Incl. Ref. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD

1шт.

6

J843760

FILTER

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

7

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

8

D136266

HOSE,9.5 mm ID x 450.00 mm, SAE 30R7

Cut from 427683C1

1шт.

9

H438360

FUEL HOSE,6.40 mm ID x 650.0 mm, SAE 30R7

Cut from 427683C1

1шт.

10

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

ELBOW, Incl. Ref. 11

1шт.

13

H426767

WASHER

3шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

15

D139225

FILTER, FUEL

if equipped

1шт.

16

248314A1

FUEL HOSE,9.53 mm ID x 280.00 mm, SAE 100R7

280 mm, 11 in, if equipped

2шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

If equipped

1шт.

12

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
