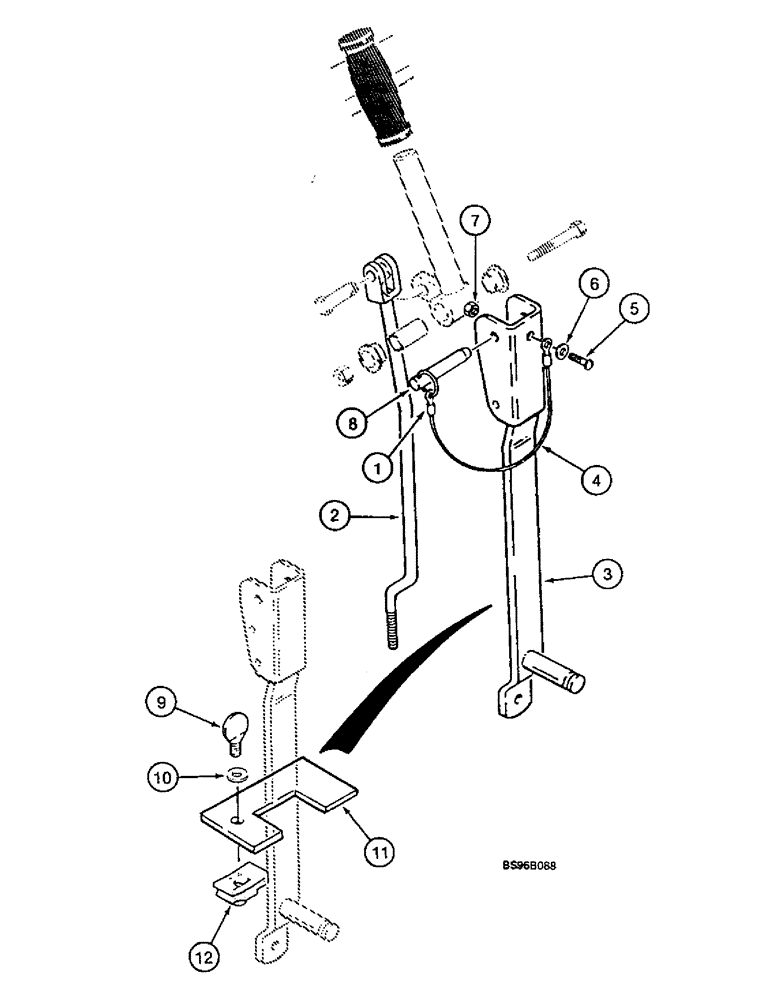

Запчасти Case IH 1825B (6-06) - CONTROL LOCK, ITALIAN D.G.M. AND GERMAN T.U.V. (11) - TRACKS/STEERING

1

223-54

TERMINAL CONNECTOR,10 - 12

TERMINAL

4шт.

2

118307A1

ROD ASSY.

2шт.

3

118309A1

LEVER

ARM

2шт.

4

H439278

ELECTRICAL WIRE

WIRE CABLE

2шт.

5

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

2шт.

6

495-31022

WASHER,#10

4шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

8

H437134

LINCH PIN,6.3mm OD

2шт.

9

H65847

THUMB SCREW,5/16" - 18 x 3/4"

Germany only

2шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Germany only

2шт.

11

119637A1

BAR

Germany only

2шт.

12

H346650

NUT

Germany only

2шт.
