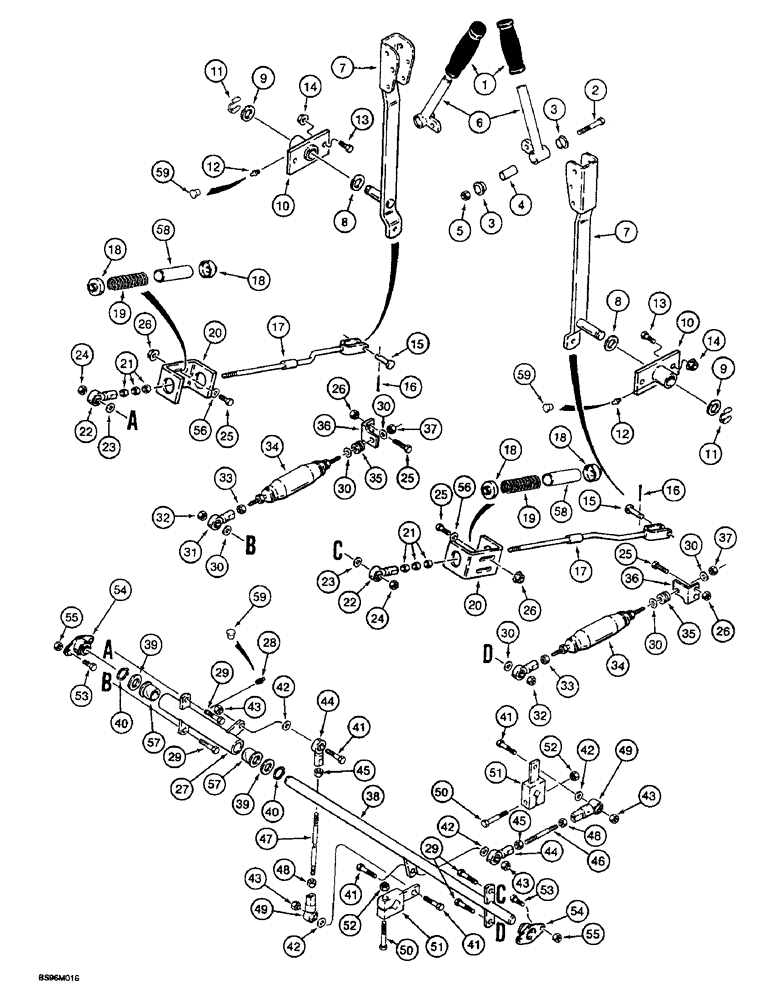

Запчасти Case IH 1825B (6-02) - CONTROLS, FORWARD AND REVERSE (11) - TRACKS/STEERING

1

D128268

HANDLE

GRIP

2шт.

1a

D133282

HANDLE

GRIP, right-hand, models with horn, not illustrated

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

E20959

BUSHING

4шт.

4

E20641

SPACER,10.31mm ID x 15.85mm OD x 35mm L

2шт.

5

231-4116

NUT,3/8"-16, GB

lock, 3/8

2шт.

6

D135154

HANDLE

LEVER

2шт.

6a

H674464

CONTROL LEVER

right-hand, models with horn, not illustrated

1шт.

7

118309A1

LEVER

ARM

2шт.

8

495-11081

WASHER,3/4", SAE

2шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

10

H674338

PIVOT ASSY.

BRACKET

2шт.

11

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER

2шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

16

432-616

COTTER PIN,3/32" x 1"

2шт.

17

E99872

TIE-ROD

2шт.

18

D63156

SPRING CUP

SEAT

4шт.

19

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

2шт.

20

D137785

BRACKET

2шт.

21

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

22

A32398

BALL JOINT

3/8 in NF

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

24

232-4116

NUT,3/8"-16, GC

2шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

27

222902A1

PITMAN

BELLCRANK

1шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

31

A32398

BALL JOINT

3/8 in NF

2шт.

32

232-4116

NUT,3/8"-16, GC

2шт.

33

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

34

D66538

SHOCK ABSORBER

2шт.

35

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

2шт.

36

D135164

SUPPORT

2шт.

37

231-2446

NUT,3/8"-24, GB

2шт.

38

D135104

SHAFT

1шт.

39

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

40

103-1475

SNAP RING,#75, Ext

1шт.

41

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

43

232-4116

NUT,3/8"-16, GC

4шт.

44

A32398

BALL JOINT

3/8 in NF

2шт.

45

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

46

128108A2

STEM

ROD, right-hand

1шт.

47

222900A1

STEM

ROD, left-hand

1шт.

48

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

49

1283151C1

END ASSY.,3/8" - 24, LH Threads

JOINT ball

2шт.

50

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

51

225796A1

LEVER

2шт.

52

232-4116

NUT,3/8"-16, GC

2шт.

53

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

54

D139039

BEARING ASSY,19mm ID

2шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

56

H426775

WASHER

4шт.

57

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

2шт.

58

236258A1

SPACER

2шт.

59

E82545

CAP

red, German T.B.G. models

3шт.

60

231-5146

FLANGE NUT,3/8"-16

2шт.

61

D76208

SPACER

2шт.

62

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
