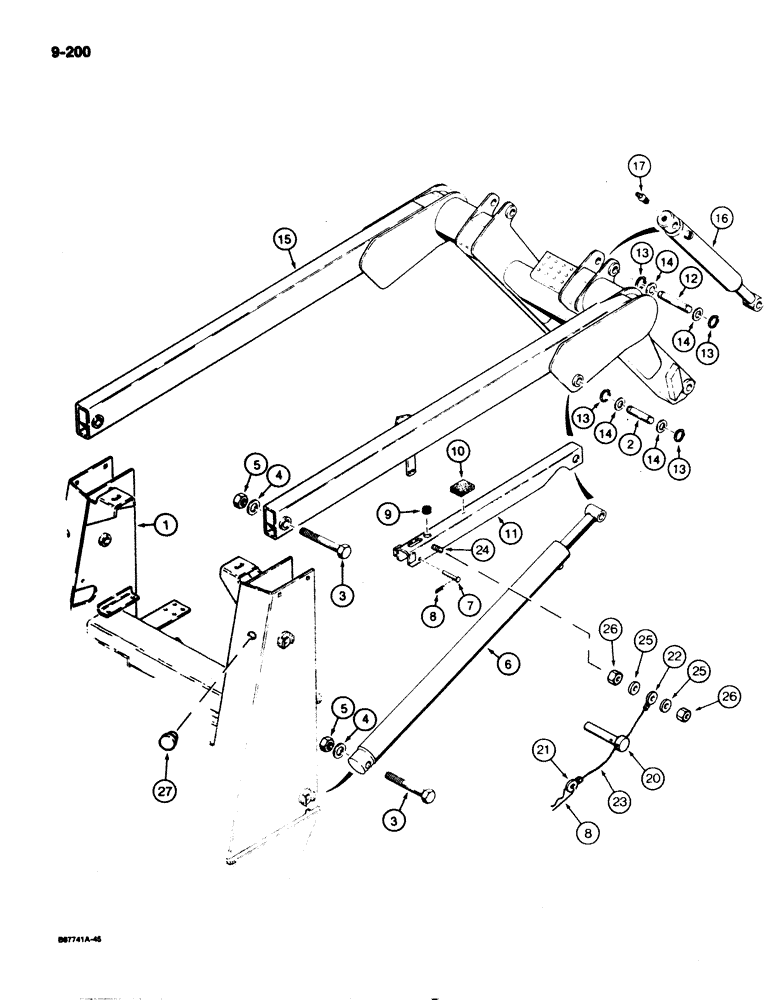

Запчасти Case IH 1825 (9-200) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS 1825 Uni Loader, see Fig. 9 198 for frame and related parts

1шт.

2

D138889

PIN,69.98mm OD x 160mm L

lift cylinder to loader lift frame

2шт.

3

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

hex head, grade 8, 1" 8 NC x 6"

4шт.

4

195-553

WASHER,1", SAE

flat, plated, 1"

4шт.

5

131-698

LOCK NUT,1"-8, GB

NUT hex, self locking, 1" 8 NC

4шт.

6

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Fig. 8 190

2шт.

7

D134253

PIN

strut lock

1шт.

8

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

9

49566

GROMMET

strut

1шт.

10

E20314

PAD

strut, lift arm, replaces D79692

1шт.

11

H672851

STRUT

lift frame support

1шт.

12

D138888

PIN,22.22mm OD x 114.6mm L

bucket tilt cylinder to loader lift frame

2шт.

13

D71829

SNAP RING,#87, Ext

Pin #87, Ext

8шт.

14

D49345

WASHER

flat, 7/8"

8шт.

15

D138658

ARM

FRAME loader lift

1шт.

16

D136128

CYLINDER

ASSEMBLY bucket tilt, parts list Fig. 8 192

2шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" 28 NF

2шт.

20

E20140

PIN

strut lock, TBG, Germany

1шт.

21

E99860

PIN

EYE wire, cable end, 0.BA, TBG, Germany

1шт.

22

E99858

ROD

EYE wire, cable end, 4.BA, TBG, Germany

1шт.

23

E99861

TUBE

WIRE nylon coated, TBG, Germany

1шт.

24

NSS

NOT SOLD SEPARAT

STUD TBG, Germany, M6 x 16 mm long

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

TBG, Germany M6

2шт.

26

825-1106

NUT,Hex, M6, Cl 8

M6, plated, TBG, Germany

2шт.

27

E82545

CAP

grease fitting, TBG, Germany

8шт.
