(8-194) - BUCKET CYLINDER, 4-IN-1

Запчасти Case IH 1825 (8-194) - BUCKET CYLINDER, 4-IN-1 (08) - HYDRAULICS

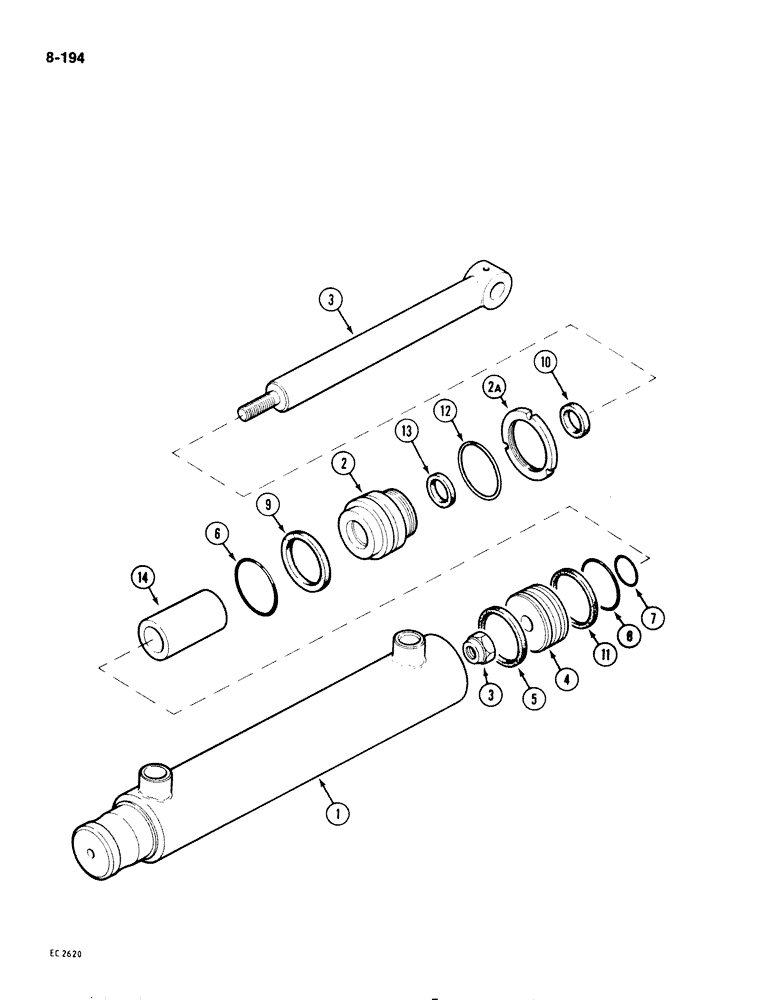

Схема запчастей Case IH 1825 - (8-194) - BUCKET CYLINDER, 4-IN-1 (08) - HYDRAULICS
7
2
4
14
5
3
6
2a
11
9
13
10
3
8
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E99740

CYLINDER

ASSEMBLY bucket, 4 IN 1

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

N14643

GLAND

cylinder

1шт.

2a

NSS

NOT SOLD SEPARAT

NUT cylinder gland

1шт.

3

NSS

NOT SOLD SEPARAT

ROD cylinder, includes nut

1шт.

4

N14642

PISTON

cylinder

1шт.

N14638

SEAL KIT

seal, cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

6

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

7

377028R1

O-RING,0.989" ID x 0.07" Width

piston, inner

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

10

697494R91

OIL SEAL

WIPER rod, gland

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER outer O, Serial Range: ring-piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER internal stop

1шт.
