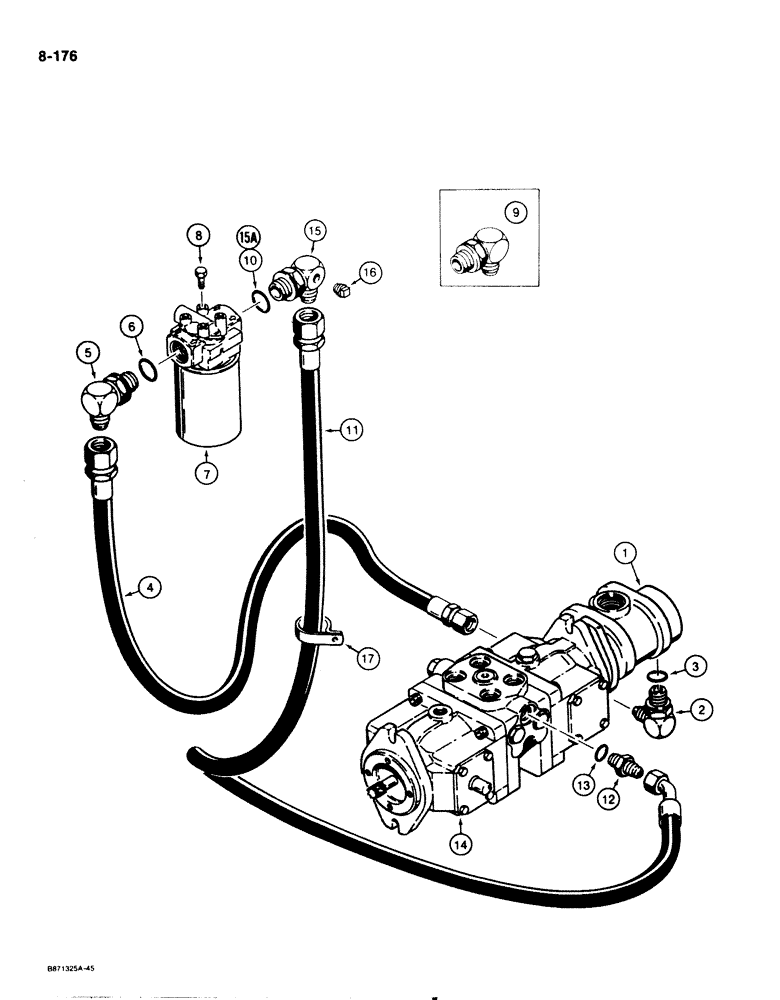

Запчасти Case IH 1825 (8-176) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT TANDEM PUMP TO HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

D136150

PUMP

ASSEMBLY hydraulic, equipment, parts list Fig. 8 188

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

4

D91258

HOSE

hydraulic equipment pump to oil filter, 45", 1150 mm, long

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, 90 degree

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

7

D121629

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, parts list Fig. 8 178

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

D131329

FITTING

ELBOW special, order E20132, 90 degree

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

11

D135950

HOSE

hydraulic oil filter to tandem pump, 43 5/16", 1100 mm, long

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

14

D134370

PUMP

ASSEMBLY tandem, parts list Figs. 6 148 and 6 150

1шт.

15

E20132

FITTING

ELBOW special, 90 degree

1шт.

15a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

16

353-200

PLUG

taper, square head, 1/8 NPT, use with E20132

1шт.

17

51200320

CLAMP

P type

2шт.
