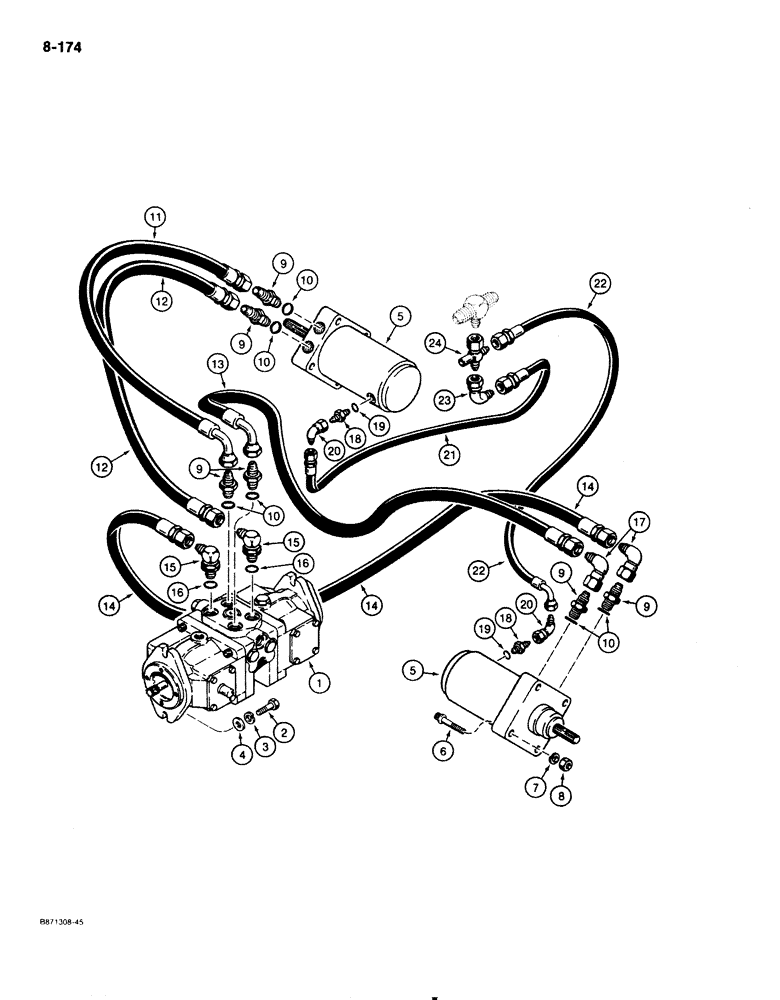

Запчасти Case IH 1825 (8-174) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT TANDEM PUMP TO HYDRAULIC DRIVE MOTORS (08) - HYDRAULICS

1

D134370

PUMP

ASSEMBLY tandem, parts list Fig. 6 148 and 6 150

1шт.

2

26-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 8

hex head, grade 8, 9/16" 12 NC x 1 1/2"

2шт.

3

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

4

195-537

WASHER,9/16"

flat, plated, 9/16"

2шт.

5

D137338

MOTOR, HYDRAULIC

MOTOR ASSEMBLY hydraulic drive, parts list Fig. 6 152

2шт.

D137338R

REMAN-HYD MOTOR

1825 (UP TO S/N JAF0069586)

2шт.

D137338C

Return Number

CORE-HYDRAULIC PUMP

1шт.

6

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT Ferry head, flanged, grade 8, 1/2" 13 NC x 2 1/2"

8шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

8

129-184

NUT,1/2"-13, G8

hex, grade 8, plated, 1/2" 13 NC

8шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight

6шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

11

D135472

HOSE

tandem pump to left hand hydraulic drive motor, 16 3/4", 425 mm, long

1шт.

12

D136659

HOSE

tandem pump to left hand hydraulic drive motor, 17 23/32", 450 mm, long

1шт.

13

D135258

HOSE

tandem pump to right hand hydraulic drive motor, 28 17/32", 725 mm, long

1шт.

14

D136895

HOSE

tandem pump to right hand hydraulic drive motor, 26 9/16", 675 mm, long

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

17

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight

2шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

street, swivel, 90 degree

2шт.

21

D64265

HOSE

left hand hydraulic drive motor to manifold, 15", 381 mm, long

1шт.

22

D135951

HOSE

manifold to right hand hydraulic drive motor, 15 3/4", 400 mm, long

1шт.

23

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

street, swivel, 90 degree

1шт.

24

D121814

FITTING

MANIFOLD adapter

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
