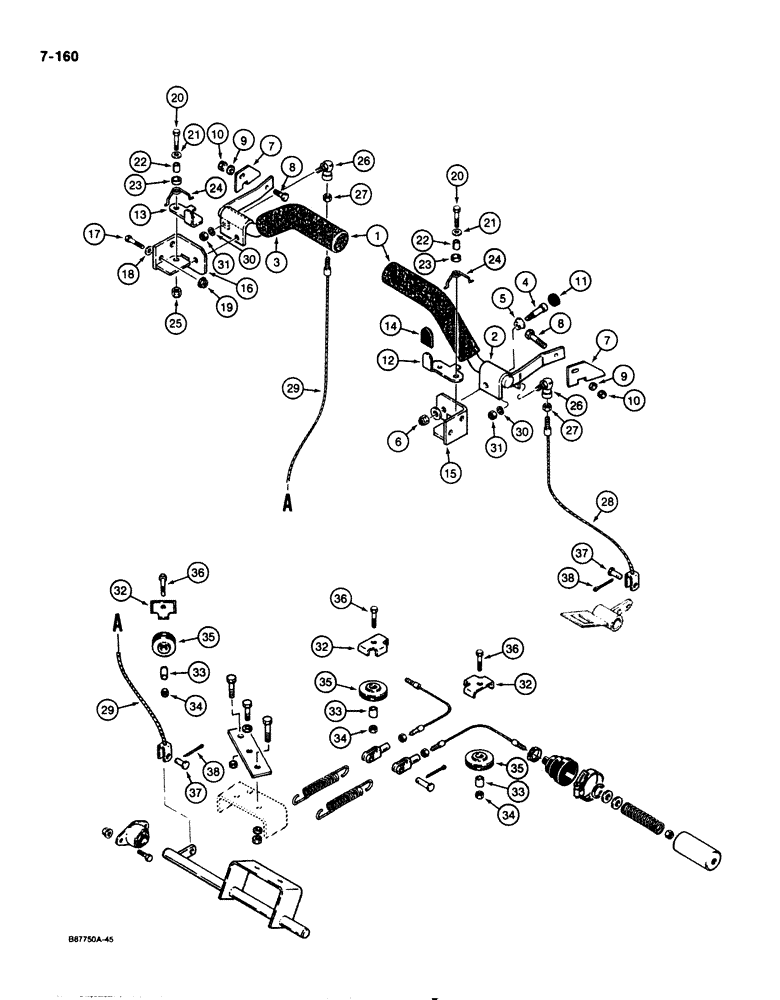

Запчасти Case IH 1825 (7-160) - PARKING LATCH AND OPERATORS RESTRAINTS (07) - BRAKES

1

H436484

GRIP

COVER operator restraint bars, replaces E99830

2шт.

2

E20846

BAR

right-hand operator restraint, replaces E99829, replaces E20182

1шт.

3

E20845

BAR

left hand operator restraint, replaces E99828, replaces E20181

1шт.

4

121-125

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 1/2"

SCREW, Hex Soc Hd, Shdr, 5/16"-18 x 1/2"

2шт.

5

D134922

WASHER

special, at restraint bar

2шт.

6

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

7

E20178

PLATE

locking, operator restraint bar

2шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16"

2шт.

11

D134923

CAP

bolt

2шт.

12

D131228

LATCH

right hand

1шт.

13

D131229

LATCH

left hand

1шт.

14

D134924

HANDLE

GRIP vinly, latch

2шт.

15

E20840

BRACKET

right hand mounting, replaces D131233

1шт.

16

E20839

BRACKET

left hand mounting, replaces D131234

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

18

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

19

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

22

H270777

SPACER

at latch

2шт.

23

D44352

BUSHING

at latch

2шт.

24

D134464

SPRING

latch

2шт.

25

131-217

LOCK NUT

NUT hex, self locking, plated, grade 8, 3/8" 16 NC

2шт.

26

H169920

BALL JOINT

JOINT ball, 1/4" 28 NF

2шт.

27

129-121

NUT,1/4"-28, G5

2шт.

28

E99996

CABLE

right hand, lock

1шт.

29

D137705

CABLE

left hand, park

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

129-21

NUT,#2-64

hex, plated, 1/4" 28 NF

2шт.

32

D124466

RETAINER

cable

3шт.

33

D95743

SPACER

cable pulley

3шт.

34

131-217

LOCK NUT

NUT hex, self locking, plated, grade 8, 3/8" 16 NC

3шт.

35

D124465

PULLEY,54mm OD

cable

3шт.

36

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

37

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

38

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.
