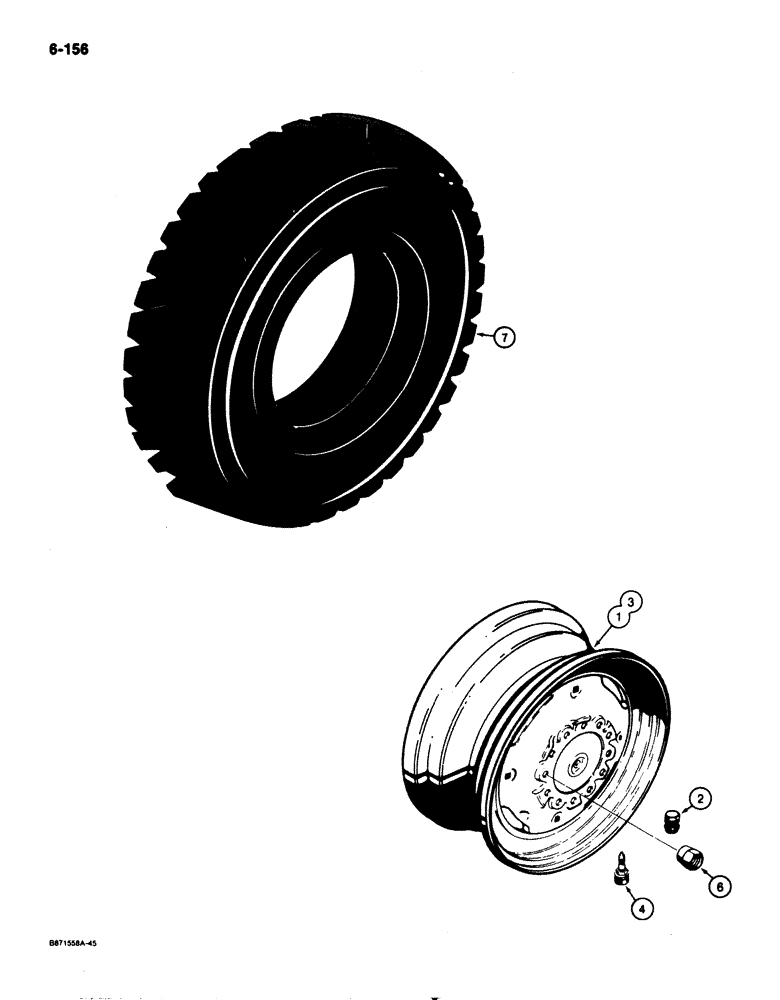

Запчасти Case IH 1825 (6-156) - WHEELS AND TIRES (06) - POWER TRAIN

1

D93912

RIM

WHEEL rim, North American models only, 27 x 8.50 x 15" tire

4шт.

1

E20404

WHEEL

rim, 27 x 8.50 x 15" tire, subs to H437812 rim 27 x 8.50 x 15, not available in North America, Includes: Ref. 2

4шт.

2

N7178

PLUG

rimhole, used on some production wheels

1шт.

3

D56868

WHEEL

rim, 5.70 x 15" tires, North American models only

4шт.

3

E20403

WHEEL

rim, 5.70 x 15" tires, not available in North America

4шт.

4

T57461

VALVE STEM

STEM valve, metal

4шт.

6

F23214

WHEEL NUT

special, wheel

12шт.

7

REF

INSTRUCTION

TIRE 8.50 x 15", machinery item, see Fig. 1 2 for ordering

4шт.

8

REF

INSTRUCTION

TIRE 5.70 x 15", machinery item, see Fig. 1 2 for ordering, not shown

4шт.

H437811

RIM

5.70 x 15

1шт.

H437812

RIM

27 x 8.50 x 15

1шт.
