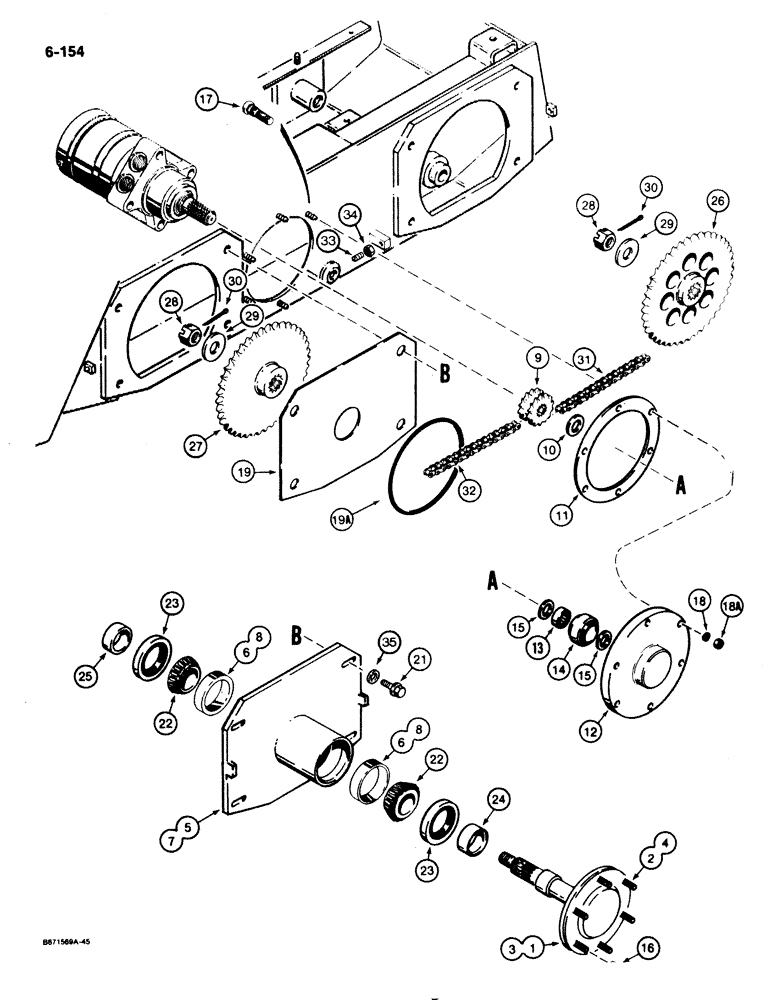

Запчасти Case IH 1825 (6-154) - AXLES AND DRIVE CHAINS (06) - POWER TRAIN

D121412

AXLE

ASSEMBLY wheel, front, Includes: Ref. 1 - 2

2шт.

1

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

2

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

D121413

AXLE

ASSEMBLY wheel, rear, Includes: Ref. 3 - 4

2шт.

3

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

4

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

E20039

HUB

ASSEMBLY axle, front, Includes: Ref. 5 - 6

2шт.

5

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

6

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP tapered roller bearing

2шт.

E20038

HUB

ASSEMBLY axle, rear, Includes: Ref. 7 - 8

2шт.

7

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

8

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP tapered roller bearing

2шт.

9

D82637

DRIVE SPROCKET

SPROCKET drive

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

thrust, drive sprocket

6шт.

11

D136535

GASKET,1.57mm Thk

bearing housing

2шт.

D134312

HOUSING

ASSEMBLY bearing, Includes: Ref. 12 - 15

2шт.

12

D134311

COVER

HOUSING bearing

1шт.

13

D80554

NEEDLE BEARING CAGE

BEARING needle, hydraulic motor shaft

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING self aligning

1шт.

15

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER bearing

2шт.

16

F23214

WHEEL NUT

special, wheel

24шт.

17

D134310

BOLT

press in, special

12шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

18a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

19

E20026

GASKET

PLATE hub

4шт.

19a

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

sprocket

4шт.

20

123-202

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5, Full Thd

BOLT hex head, self tapping, 3/8" 16 NC x 1 3/4"

4шт.

21

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

hex flange head, grade 8, teflon coated, 1/2" 12 NC x 1 3/8"

16шт.

22

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

BEARING cone

8шт.

23

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

24

D122289

SPACER

hydraulic motor

4шт.

25

D134202

SPACER,44.5mm ID x 57.23mm OD x 16mm L

axle

4шт.

26

D134203

DRIVE SPROCKET

SPROCKET axle, front

2шт.

27

D135527

DRIVE SPROCKET

SPROCKET axle, rear

2шт.

28

425-1314

SLOTTED NUT,7/8"-14, G5

NUT hex, slotted, plated, 7/8" - 14 NF

4шт.

29

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

special, 0.1562", 3.96 mm, thick

4шт.

30

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

31

E20048

CHAIN (AG)

CHAIN ASSEMBLY 76 pitch, right front, left rear

2шт.

32

E20049

CHAIN (AG)

CHAIN ASSEMBLY 62 pitch, right rear, left front

2шт.

33

85-636

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

SCREW set, square head, cup point

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

35

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special

4шт.

Ref: #35 - use 495 81025 non heat treated washer.

1шт.
