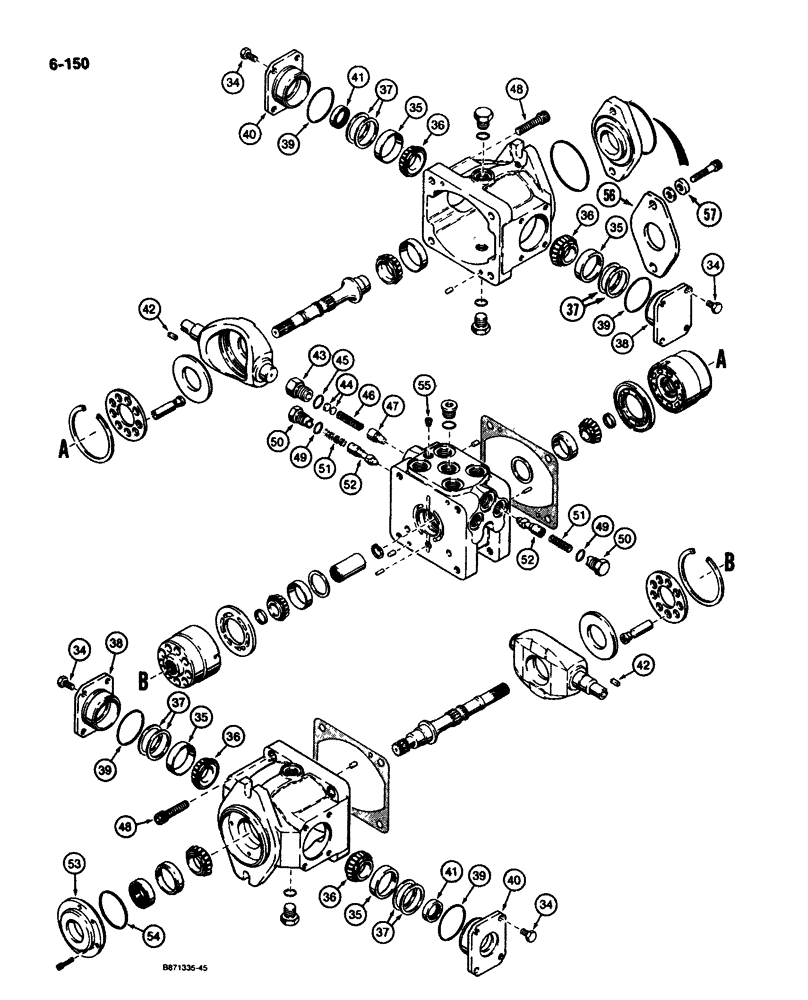

Запчасти Case IH 1825 (6-150) - TANDEM PUMP (06) - POWER TRAIN

D134370

PUMP

ASSEMBLY tandem, continued from Fig. 6-148, Includes: Ref. 34 - 44 & Ref. 1 - 23 on Figure 6-148

1шт.

34

N14504

BOLT

hex head, special

16шт.

35

572564R1

BEARING CUP

CUP tapered roller bearing, swash plate

4шт.

36

N14502

ROLLER BEARING

BEARING taper roller, sides of front and rear housing

4шт.

37

N14503

SHIM

bearing cup, replaces 572564R1

1шт.

38

N14507

COVER

bearing closed

2шт.

39

N14506

O-RING

bearing cover

4шт.

D134370

PUMP

ASSEMBLY tandem

1шт.

40

N14505

COVER

bearing, with hole for swash plate shaft

2шт.

41

N14508

OIL SEAL

bearing cover, swash plate shaft

2шт.

42

N14509

KEY

swash plate

2шт.

43

H407726

PLUG

charge pressure relief

1шт.

44

H570283

SHIM

charge pressure relief

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

charge pressure relief

1шт.

46

V38370

SPRING

charge pressure relief

1шт.

47

V38371

VALVE

POPPET charge pressure relief

1шт.

48

61-728

HEX SOC SCREW,7/16"-14 x 1 3/4"

BOLT hex socket head, 7/16" 14 NC x 1 3/4"

8шт.

49

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Circuit relief

4шт.

50

N14513

CAP

PLUG circuit relief

4шт.

51

N14514

VALVE

SPRING circuit relief

4шт.

52

N14515

VALVE POPPET

CARTRIDGE circuit relief

4шт.

53

N14498

COVER

end, rear

1шт.

54

N14500

O-RING

rear housing

1шт.

55

N14517

PLUG

valve block

1шт.
