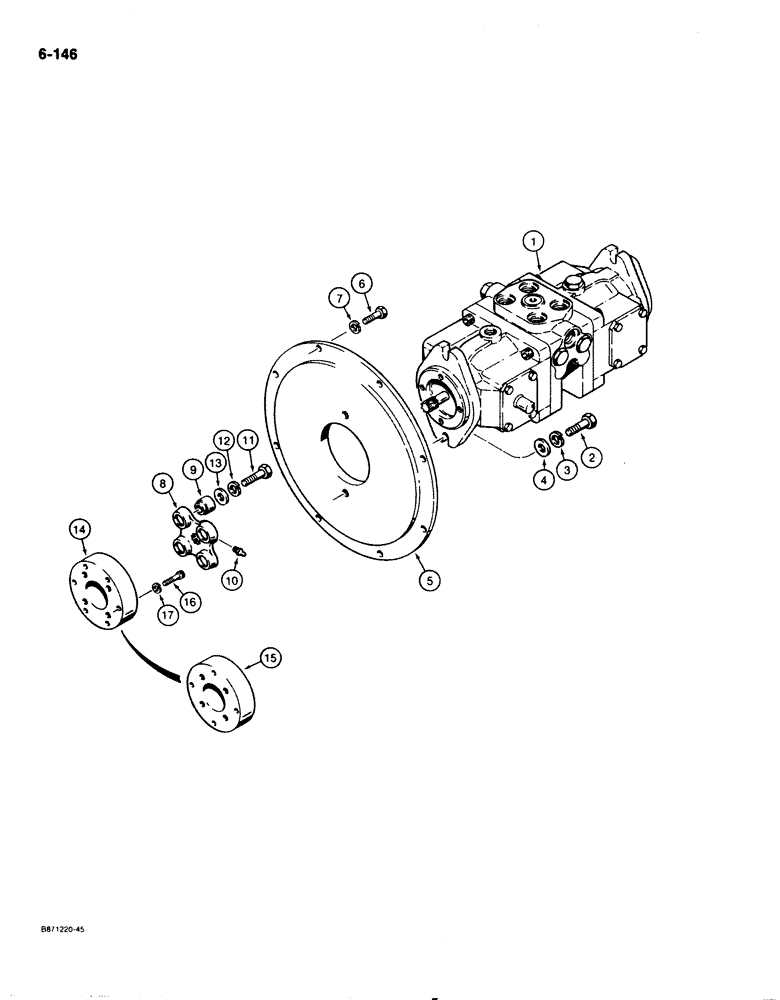

Запчасти Case IH 1825 (6-146) - TANDEM PUMP MOUNTING AND ADAPTING PARTS (06) - POWER TRAIN

1

D134370

PUMP

ASSEMBLY tandem, parts list Figs. 6 148 and 6 150

1шт.

2

26-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 8

hex head, grade 8, 9/16" 12 NC x 1 1/2"

2шт.

3

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

4

195-537

WASHER,9/16"

flat, plated, 9/16"

2шт.

5

D135224

PLATE

pump mounting

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

D140524

FLEXIBLE COUPLING,13T

COUPLING flexible, tandem pump shaft

1шт.

9

A45216

BUSHING

coupling

4шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" 28 NF

1шт.

11

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

12

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flat, hardened, 7/16" ID x 3/4" OD x 1/16" thick

4шт.

14

D136251

PLATE

tandem pump adapting, used on gasoline models only

1шт.

15

D135816

PLATE

tandem pump adapting, used on diesel models only

1шт.

16

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

17

892-1108

LOCK WASHER,M8

plated M8

4шт.

FOOTNOTE

1шт.

d122404 sender is used for diesel also

1шт.
