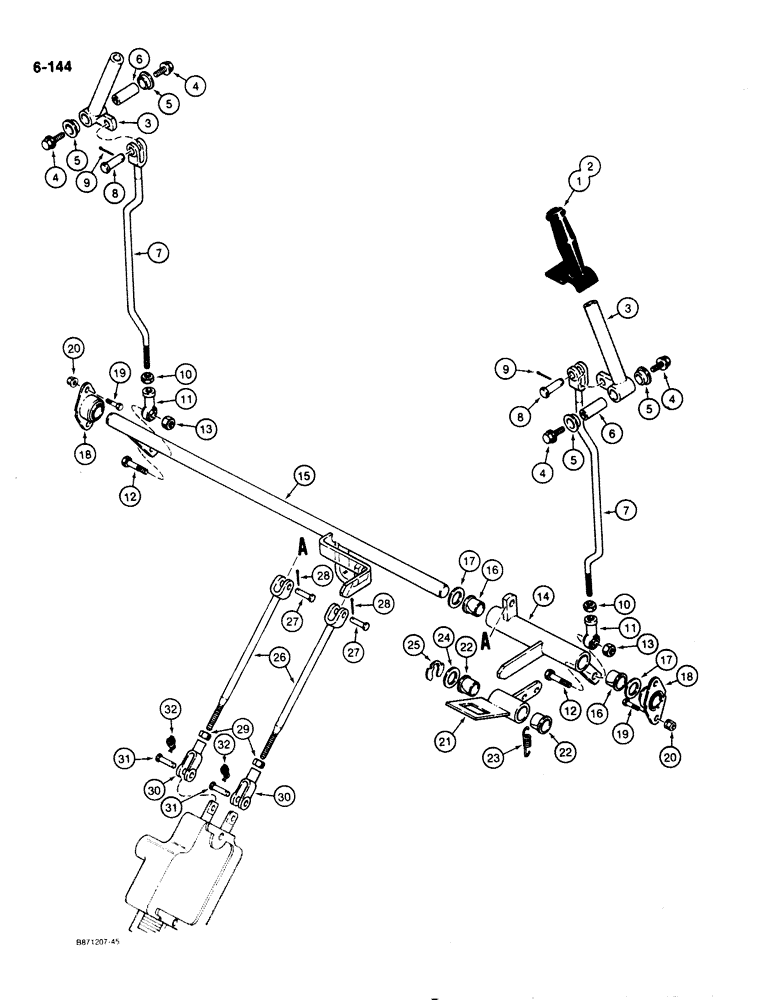

Запчасти Case IH 1825 (6-144) - LOADER CONTROLS (06) - POWER TRAIN

1

E99359

HANDLE

GRIP right hand control lever

1шт.

2

E99358

HANDLE

GRIP left hand control lever

1шт.

3

D135154

HANDLE

LEVER control, loader, right hand bucket control, left hand lift arm control, see Fig. 4 128 for lever used on models with a horn

2шт.

4

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

5

D123758

FLANGED BEARING,15.9mm ID x 17.4mm OD x 9.46mm L

BUSHING control lever

4шт.

6

D135135

SPACER

control handle

2шт.

7

E99868

ROD

control

2шт.

8

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

9

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

10

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" 24 NF

2шт.

11

D59922

BALL JOINT

JOINT ball, 3/8" 24 NF

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" 16 NC

2шт.

14

D135110

LEVER

BELLCRANK shaft

1шт.

15

D135106

SHAFT

mounting

1шт.

16

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2шт.

18

D139039

BEARING ASSY,19mm ID

BEARING shaft mounting

2шт.

19

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

20

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

21

D137713

LOCK

PLATE loader lock

1шт.

22

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

2шт.

23

A33699

SPRING

loader lock

1шт.

24

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

1шт.

25

D95097

RING, SNAP

RETAINER loader lock

1шт.

26

E99874

ROD

connecting, loader control valve

2шт.

27

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

2шт.

28

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

29

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

2шт.

30

H382283

YOKE,5/16" - 24

CLEVIS at loader control valve

2шт.

31

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis, link

2шт.

32

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin

2шт.
