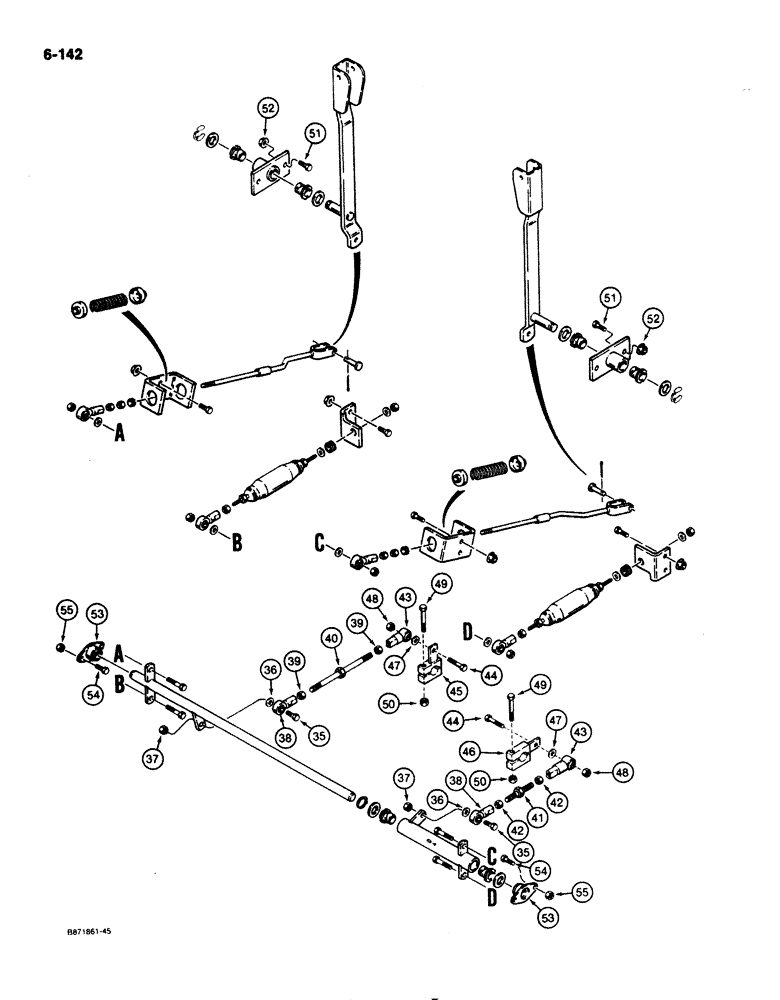

Запчасти Case IH 1825 (6-142) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN

35

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

36

A30058

WASHER

special

2шт.

37

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, plated, 3/8" 16 NC

2шт.

38

D59922

BALL JOINT

JOINT ball, right hand thread, at mounting shaft and bellcrank, 3/8" 24 NF, replaces S108030

2шт.

39

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" 24 NF

2шт.

40

E99696

ROD

left hand pump control, diesel models only

1шт.

40

E99688

ROD

left hand pump control, gasoline models only

1шт.

41

E99692

ROD

right hand pump control

1шт.

42

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

43

E98932

SPHERICAL BEARING

JOINT ball, left hand thread, at pump control arm, 3/8" - 24 NF

2шт.

44

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

45

D135216

LEVER

ARM left hand pump control

1шт.

46

D135218

LEVER

ARM right hand pump control

1шт.

47

A30058

WASHER

special

2шт.

48

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, plated, 3/8" 16 NC

2шт.

49

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

50

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" 18 NC

2шт.

51

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

52

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

53

D139039

BEARING ASSY,19mm ID

BEARING shaft and bellcrank mounting

2шт.

54

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

55

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.
