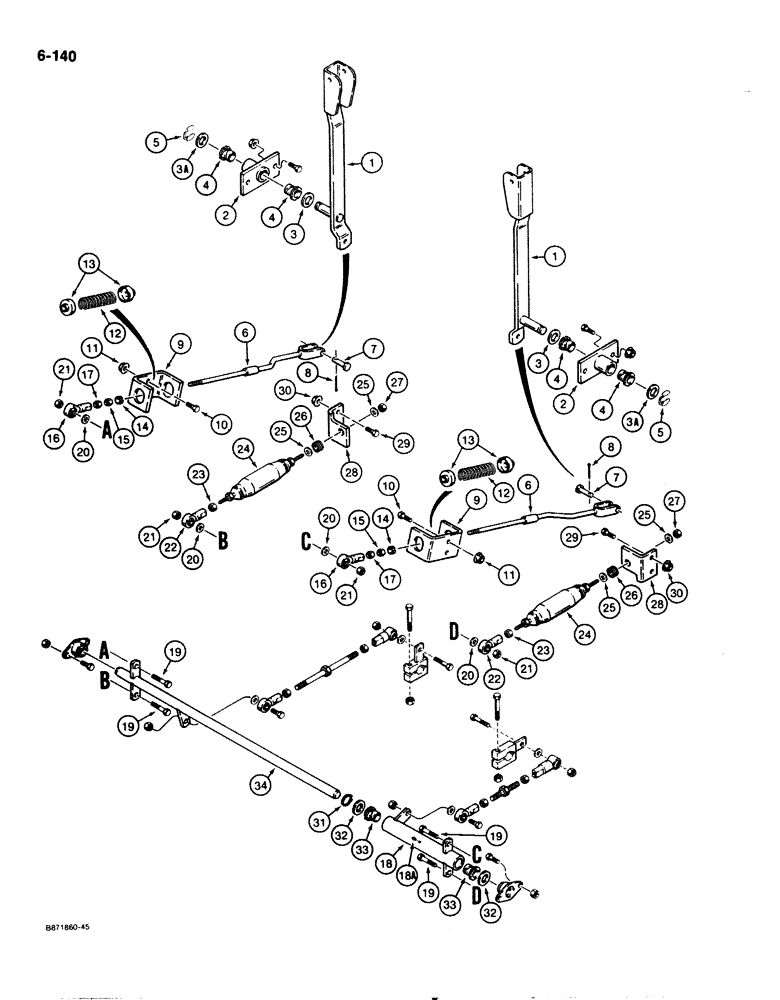

Запчасти Case IH 1825 (6-140) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN

1

D135161

LEVER

ARM control lever

2шт.

2

D135100

PIVOT

BRACKET pivot mounting

2шт.

3

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2шт.

3a

A26462

WASHER

special, spacer

2шт.

4

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

4шт.

5

D95097

RING, SNAP

RETAINER bushing

2шт.

6

E99872

TIE-ROD

ROD control

2шт.

7

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

8

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

9

D137785

BRACKET

spring retaining

2шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

12

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

rod

2шт.

13

D63156

SPRING CUP

SEAT spring

4шт.

14

D123539

BUSHING

SPACER 13/32", 10 mm, ID x 5/8", 16 mm, OD x 1/4", 6 mm, long

2шт.

15

131-528

LOCK NUT,3/8"-24

NUT hex, self locking, 3/8" 24 NF

2шт.

16

S108030

JOINT

ball, control rod, 3/8" 24 NF, replaces S108030

2шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" 24 NF

2шт.

18

D135102

LEVER

BELLCRANK shaft

1шт.

18a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

20

A30058

WASHER

special

4шт.

21

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" 16 NC

4шт.

22

D59922

BALL JOINT

JOINT ball, shock absorber, 3/8" 24 NF

2шт.

23

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" 24 NF

2шт.

24

D66538

SHOCK ABSORBER

ABSORBER shock, pump controls

2шт.

25

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

4шт.

26

49566

GROMMET

bracket

2шт.

27

131-528

LOCK NUT,3/8"-24

NUT hex, self locking, 3/8" 24 NF

2шт.

28

D135164

SUPPORT

BRACKET shock mounting

2шт.

29

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

30

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

31

R39773

SNAP RING,#75, Ext

Ring, Snap, , shaft #75, Ext

1шт.

32

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2шт.

33

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon, mounting, Serial Range: shaft-bellcrank

2шт.

34

D135104

SHAFT

mounting

1шт.
