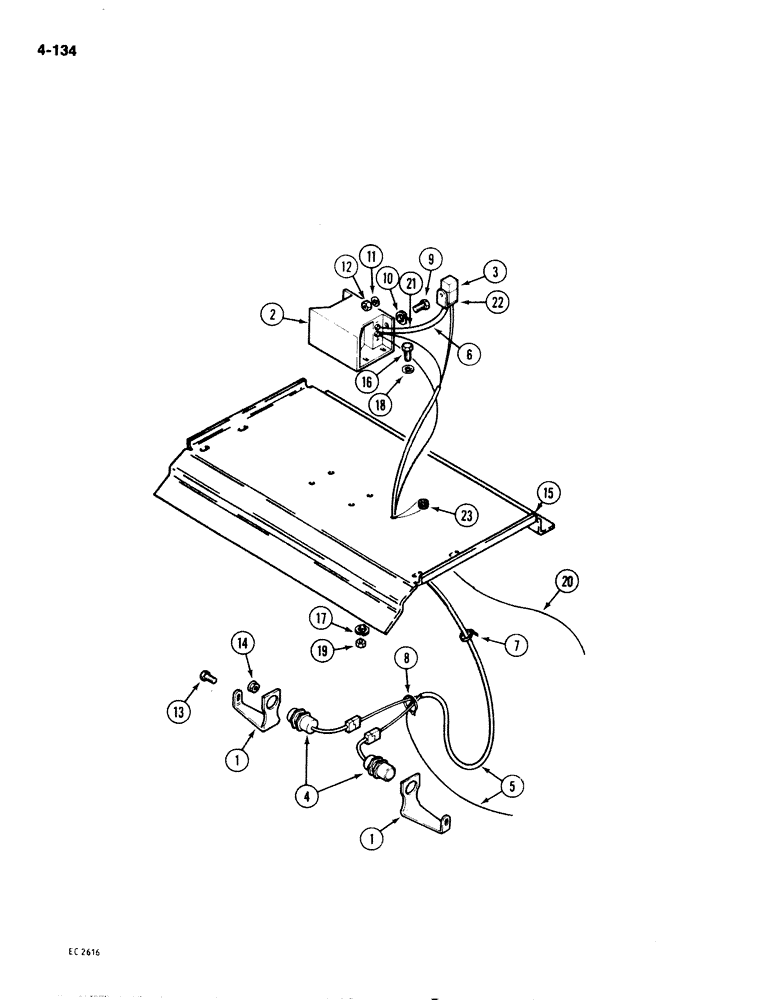

Запчасти Case IH 1825 (4-134) - BACKUP ALARM, OPTIONAL (04) - ELECTRICAL SYSTEMS

1

E20400

SUPPORT

BRACKET switch mounting, replaces H435139

2шт.

2

D121972

ALARM

backup

1шт.

REF 2 FOR NEW STYLE ALARM USE 283178A3. CAN BE SEEN IN 85XT, 90XT, AND 95XT BOOKS

1шт.

3

D128310

RELAY

SWITCH relay

1шт.

Ref. item 3 D128310 relay is marked 40 amp on the relay this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature. by tsg bb

1шт.

4

D136898

SWITCH

proximity

2шт.

5

E20190

HARNESS

backup alarm

1шт.

6

E20189

ELECTRICAL WIRE

WIRE positive link

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

9

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT hex head, plated, no. 10 24 NC x 1/2"

1шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

11

195-513

WASHER,#10

flat, plated, No. 10

1шт.

12

129-17

NUT,Hex, #10 - 24

NUT hex, plated, No. 10 24 NC

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, plated, 5/16" 18 NC

2шт.

15

E20326

PANEL

COVER battery, engine, replaces E99975

1шт.

16

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

hex head, plated, 1/4" 20 NC x 3/4"

4шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

4шт.

19

425-104

NUT,1/4"-20, Cl 5

hex, plated, 1/4" 20 NC

4шт.

20

E20405

ELECTRICAL WIRE

WIRE positive feed

1шт.

21

E20242

ELECTRICAL WIRE

WIRE negative link

1шт.

22

E20251

PLUG

relay

1шт.

23

49566

GROMMET

engine cover

1шт.
