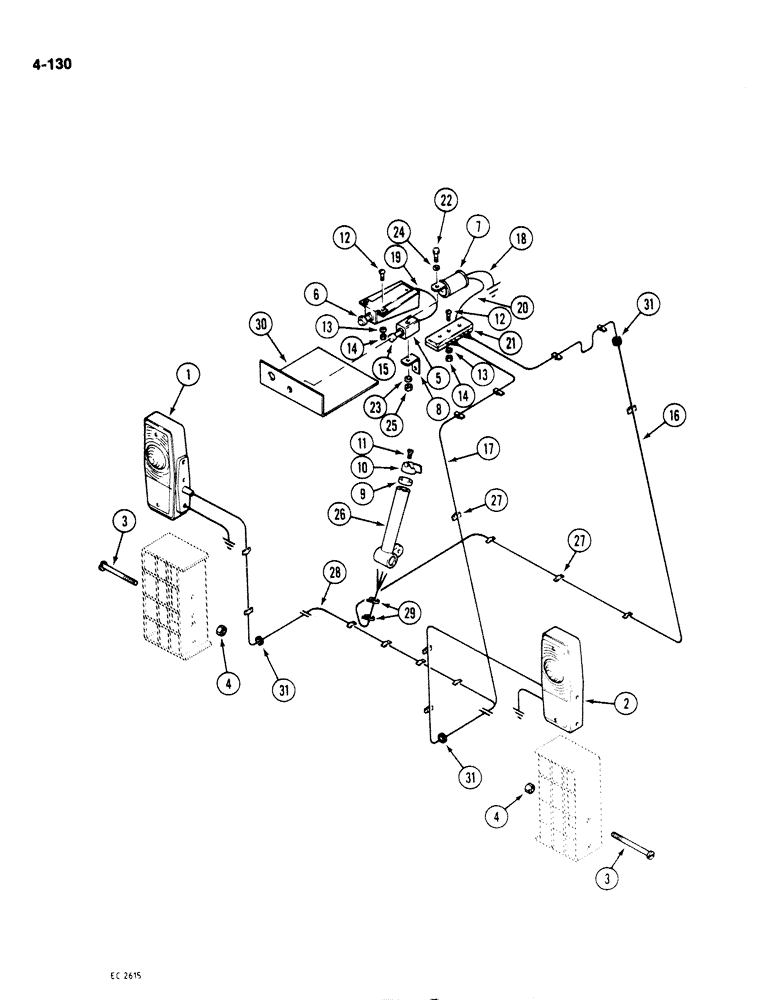

Запчасти Case IH 1825 (4-130) - ROAD LAMPS, NOT AVAILABLE IN NORTH AMERICA (04) - ELECTRICAL SYSTEMS

1

E99149

LIGHT, WARNING

LAMP flasher, side and tail, left hand

1шт.

2

E99150

LIGHT, WARNING

LAMP flasher, side and tail, right hand

1шт.

3

E99166

SCREW

pan head, slotted M5

4шт.

4

825-1105

NUT,M5, Cl 8

hex, plated, 5 mm 0.8

4шт.

5

D74330

SWITCH

remote fuel shut off

1шт.

6

E20258

FLASHER SWITCH

SWITCH hazard warning

1шт.

7

E99253

FLASHER UNIT

RELAY flasher

1шт.

8

E99227

CLAMP

BRACKET switch

1шт.

9

E99169

TERMINAL CONNECTOR

ADAPTER switch

1шт.

10

E99154

SWITCH

indicator, left or right hand

1шт.

11

E99168

SCREW

4 BA

2шт.

12

E99167

SCREW

M4 x 14 mm long

4шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

14

825-1104

NUT,M4, Cl 8

plated, M4 x 0.7

4шт.

15

D95781

BUTTON

KNOB light switch

1шт.

16

E20259

HARNESS

WIRE indicator, Serial Range: switch-relay

1шт.

17

E20257

HARNESS

to lamps, flasher, side, tail, and rear

1шт.

18

E99229

ELECTRICAL WIRE

WIRE ground to flasher relay

1шт.

19

E99309

ELECTRICAL WIRE

WIRE light switch to remote fuel shutoff switch

1шт.

20

E20123

ELECTRICAL WIRE

WIRE flasher to junction box

1шт.

21

E99239

JUNCTION BOX

BOX cable junction

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

E99895

HANDLE

LEVER control, loader

1шт.

27

R84910

CLIP wire harness

18шт.

28

E20260

HARNESS

WIRE light connector

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

30

E20261

PLATE

COVER light switch

1шт.

31

49566

GROMMET

wire

3шт.
