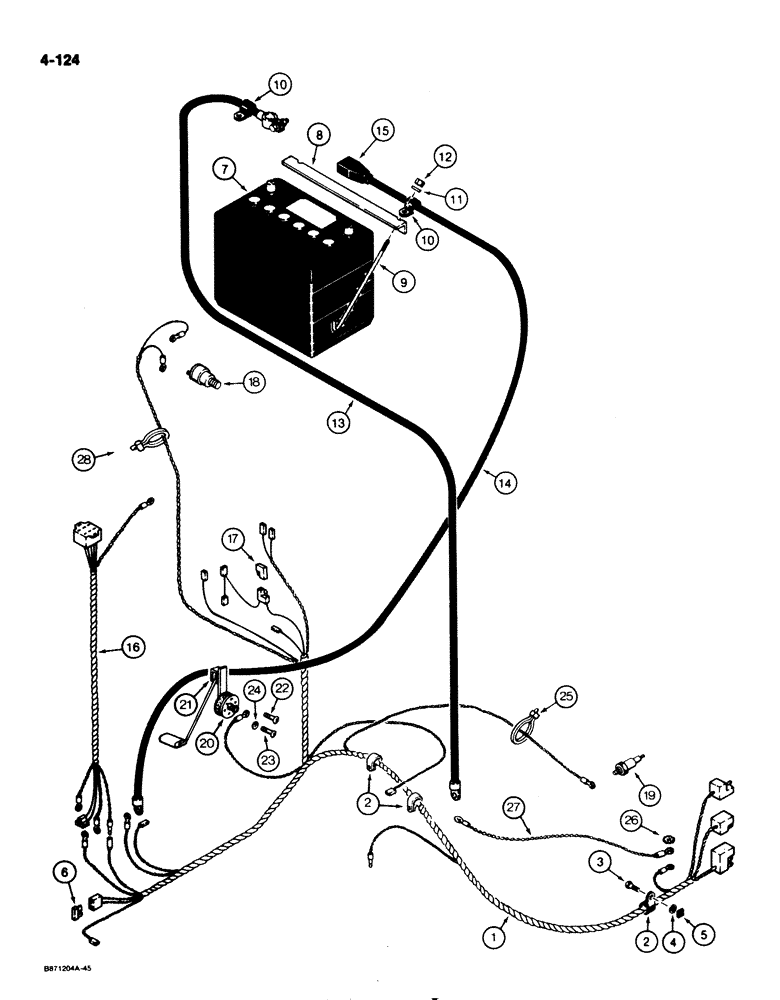

Запчасти Case IH 1825 (4-124) - REAR HARNESS AND BATTERY, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

D136820

HARNESS

rear

1шт.

2

49855

CLAMP

P type, rear harness, lower right hand side of chassis

3шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

25-285

SQUARE NUT,Sq, 5/16"-18

square, heavy, 5/16" 18 NC

1шт.

6

A149802

FUSE

20 amp

1шт.

7

E20043

BATTERY

dry, 12 volt

1шт.

8

D59706

ANGLE

battery hold down

1шт.

9

E98706

BOLT

J, battery

2шт.

10

49838

CLAMP

P type, battery cables

2шт.

11

195-104

WASHER,3/8"

flat, plated, 3/8"

2шт.

12

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" 16 NC

2шт.

13

D136983

CABLE

battery, negative

1шт.

14

D136982

CABLE

battery, positive, Includes: Ref. 15

1шт.

15

A27072

COVER

BOOT positive battery cable

1шт.

16

D136891

HARNESS

voltage, Serial Range: regulator-alternator

1шт.

17

L71879

DIODE ELEMENT,400V, 3A

DIODE harness

1шт.

18

D123864

SWITCH

charge pressure

1шт.

19

D132280

SWITCH

hydraulic oil temperature

1шт.

20

D122404

SENDER UNIT

SENDER fuel gauge

1шт.

d122404 sender is used for diesel also

1шт.

21

A11822

GASKET

fuel sender

1шт.

22

D75465

SCREW,#10 - 32 x 5/8"

No. 10 32

4шт.

23

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

No. 10 32

1шт.

24

D83885

WASHER

special, copper

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

26

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

27

D87572

ELECTRICAL WIRE

CABLE ground, replaces E20176

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
