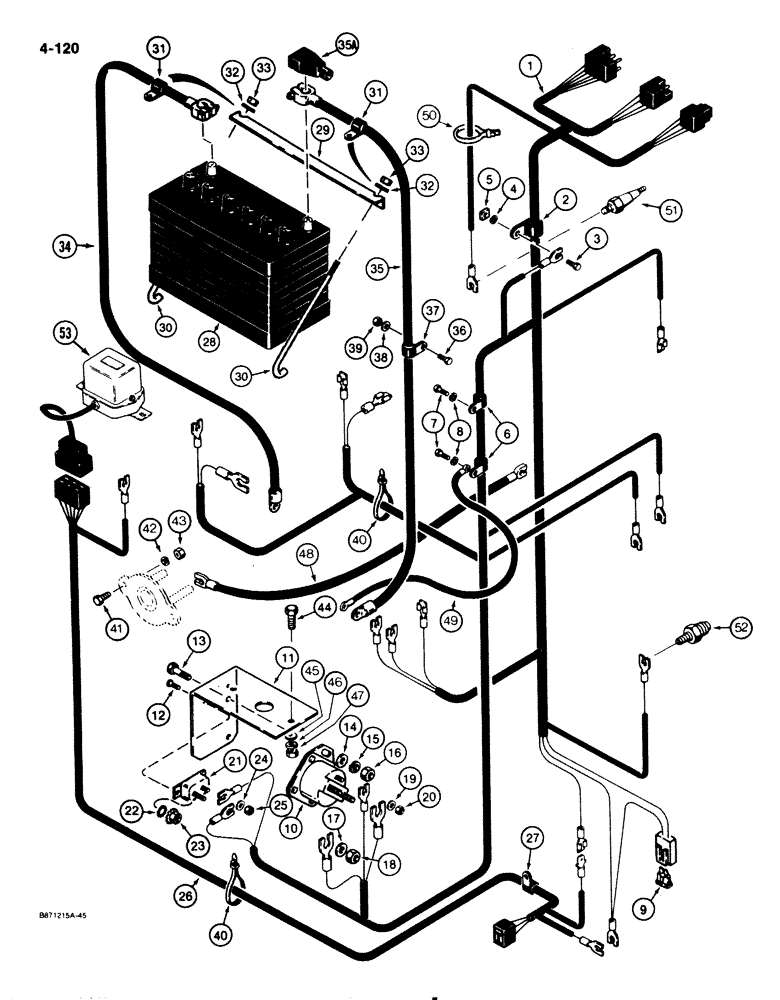

Запчасти Case IH 1825 (4-120) - REAR HARNESS, BATTERY, AND GLOW PLUG, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

D135981

HARNESS

rear

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P type, rear harness, lower right hand side of chassis

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

25-285

SQUARE NUT,Sq, 5/16"-18

square, heavy, 5/16" 18 NC

1шт.

6

49838

CLAMP

P type, rear harness at flywheel housing

2шт.

7

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

892-1108

LOCK WASHER,M8

plated M8

2шт.

9

A149804

FUSE

30 amp

1шт.

10

A39079

SOLENOID

RELAY glow plug

1шт.

11

D139859

MOUNTING PARTS

BRACKET mounting, glow plug relay and circuit breaker

1шт.

12

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8 32 NC x 1/2"

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

hex, plated, 1/4" 20 NC

2шт.

17

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

195-513

WASHER,#10

flat, plated, No. 10

1шт.

20

129-37

NUT,#10-32

1шт.

21

A22877

BREAKER,40A

circuit, 40 amperes

1шт.

22

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

23

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

with lock washer, plated, No. 8 32 NC

2шт.

24

195-513

WASHER,#10

flat, plated, No. 10

2шт.

25

129-37

NUT,#10-32

2шт.

26

D138965

HARNESS

voltage, Serial Range: regulator-alternator

1шт.

27

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P type, voltage regulator to alternator harness

1шт.

Ref #27A 1959598C1 Glowplug Thermal Fuse

1шт.

28

E20043

BATTERY

dry, 12 volt

1шт.

29

D59706

ANGLE

battery hold down

1шт.

30

E98706

BOLT

J type, battery, hold down

2шт.

31

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P type, battery cables

2шт.

32

195-104

WASHER,3/8"

flat, plated, 3/8"

2шт.

33

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" 16 NC

2шт.

34

D136983

CABLE

battery, negative

1шт.

35

D136982

CABLE

battery, positive

1шт.

35a

A27072

COVER

BOOT positive battery cable

1шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

37

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P type, positive battery cable

1шт.

38

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

39

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, plated, 5/16" 18 NC

1шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

41

182-573

SCREW,Cross Pan Hd, #10-24 x 1/2"

pan head, No. 10 24 x 1/2"

2шт.

42

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

43

129-57

NUT

hex, No. 10 24

2шт.

44

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

45

195-18

WASHER,1/4"

flat, 1/4"

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

47

25-104

NUT,1/4"-20, G5

2шт.

48

E99994

ELECTRICAL WIRE

WIRE feed, glow plug, 21 5/8", 550 mm, long

1шт.

49

D87572

ELECTRICAL WIRE

CABLE ground, Replaces E20176

1шт.

50

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

51

D132280

SWITCH

temperature sender

1шт.

52

A154283

SWITCH

temperature sender

1шт.

53

1959635C1

REGULATOR

voltage

1шт.
