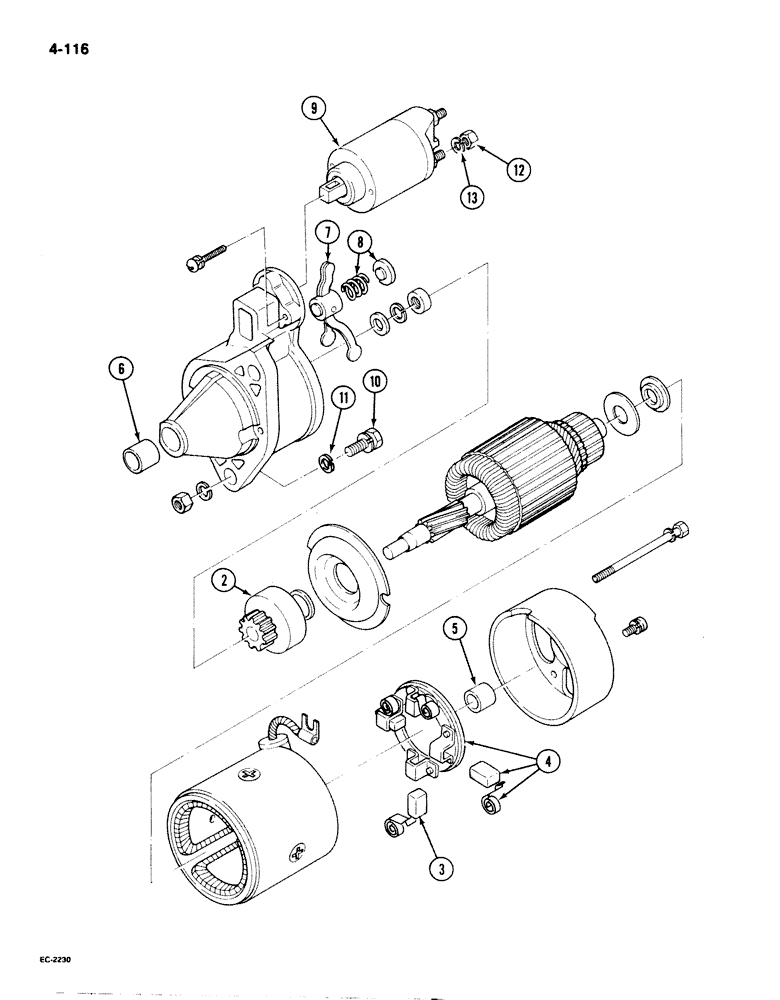

Запчасти Case IH 1825 (4-116) - STARTER MOTOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1972280C1

STARTING MOTOR

STARTER ASSEMBLY engine, Includes: Ref. 2 - 9

1шт.

2

1972282C1

PINION

GEAR starter drive

1шт.

3

1972283C1

BRUSH, COMMUTATOR

BRUSH positive

2шт.

4

1960023C1

BRACKET

HOLDER brush, with two negative brushes and springs

1шт.

5

1960026C1

BUSHING

rear

1шт.

6

1960028C1

BUSHING

drive end

1шт.

7

1960030C1

LEVER

shift

1шт.

8

1960031C1

KIT

SET lever return spring and seat

1шт.

9

1972285C1

SOLENOID

magnetic switch

2шт.

10

30022R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

starter to flywheel housing, M10 x 35 mm

2шт.

11

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

2шт.

12

825-1108

NUT,Hex, M8, Cl 8

hex, plated, 8 mm 1.25

2шт.

13

892-1108

LOCK WASHER,M8

plated M8

2шт.
