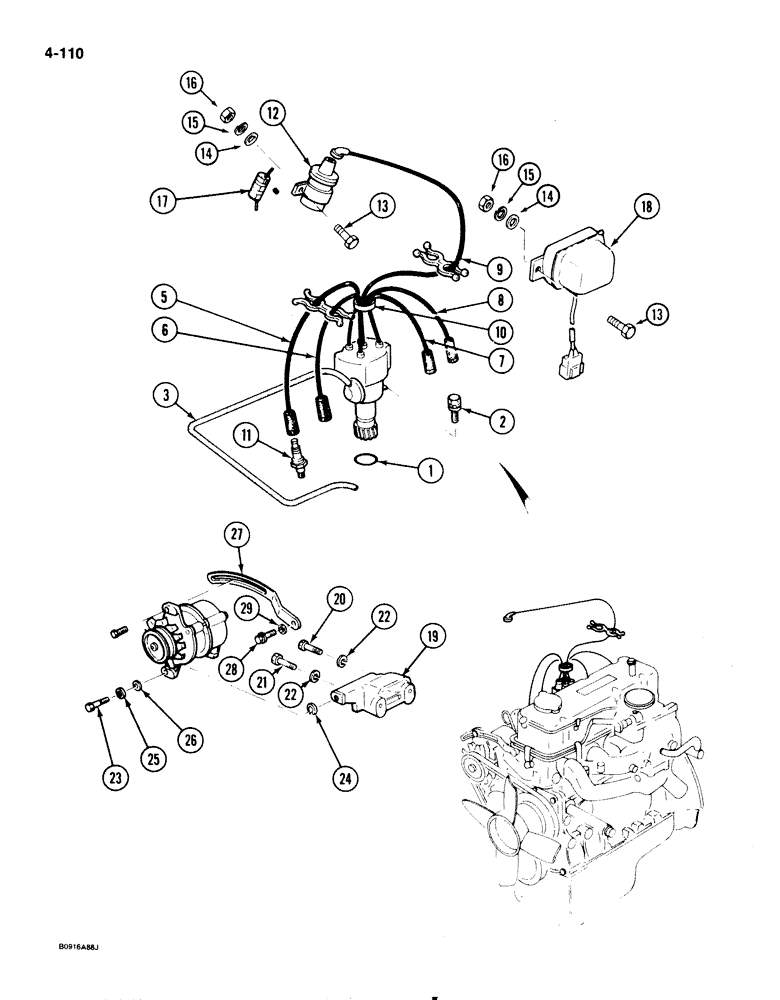

Запчасти Case IH 1825 (4-110) - ENGINE ELECTRICAL SYSTEM, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

1972212C1

RING

distributor support seal

1шт.

2

1972213C1

CAPTIVE WASHER SCREW

SCREW distributor lock down

1шт.

3

1972249C1

TUBE

vacuum advance control

1шт.

1972314C1

CABLE

SET high tension, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

CABLE high tension No. 1

1шт.

6

NSS

NOT SOLD SEPARAT

CABLE high tension No. 2

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE high tension No. 3

1шт.

8

NSS

NOT SOLD SEPARAT

CABLE high tension No. 4

1шт.

9

NSS

NOT SOLD SEPARAT

CABLE high tension, Serial Range: coil-distributor

1шт.

10

NSS

NOT SOLD SEPARAT

RING high tension cable

1шт.

11

1972219C1

PLUG

spark, NGK B4ES

4шт.

12

1972220C1

COIL

ignition, with mounting bracket

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

17

1972221C1

RESISTOR

ignition coil

1шт.

18

1972223C1

REGULATOR

voltage

1шт.

19

1972224C1

BRACKET

alternator

1шт.

20

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

plated Hex, M10 x 35, 8.8, Full Thd

1шт.

21

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex head, plated, 10 mm 1.5 x 45 mm, 8.8

1шт.

22

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

2шт.

23

1972225C1

BOLT

, Serial Range: alternator-bracket

2шт.

24

1972318C1

SHIM

alternator 0.3 mm

1шт.

24

1972319C1

SHIM

alternator 0.2 mm

1шт.

25

892-1108

LOCK WASHER,M8

plated M8

2шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

1972226C1

BAR

alternator adjusting

1шт.

28

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex head, 8 mm 1.25 x 20 mm, 10.9

1шт.

29

892-1108

LOCK WASHER,M8

plated M8

1шт.
