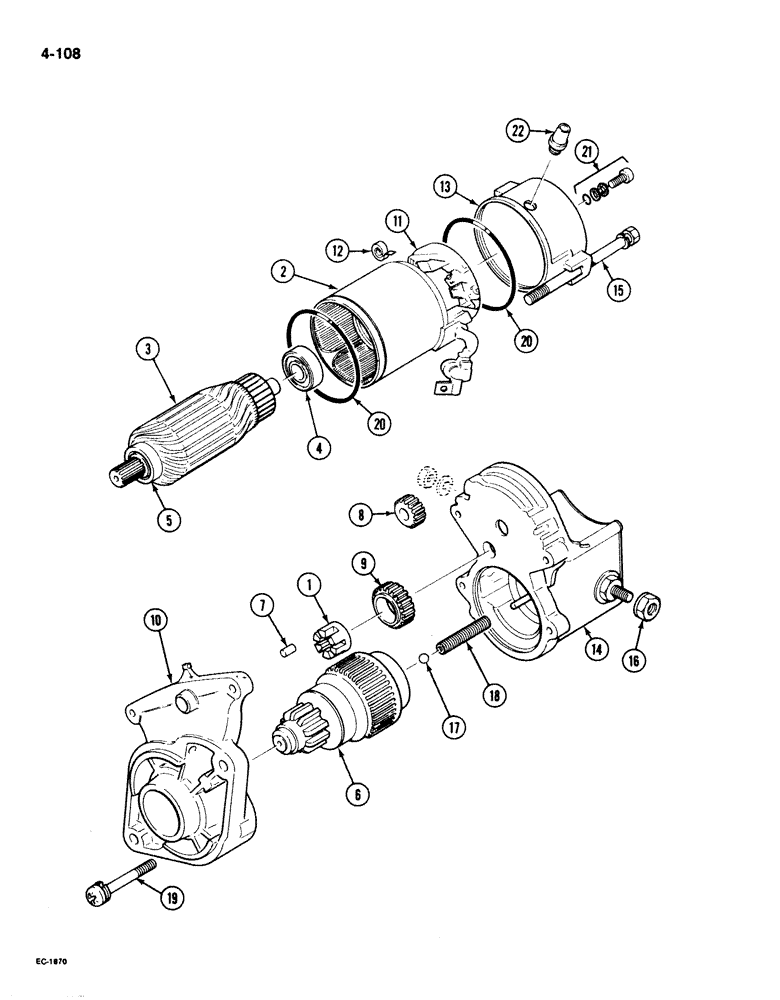

Запчасти Case IH 1825 (4-108) - STARTER MOTOR, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1959380C1

STARTING MOTOR

STARTER ASSEMBLY engine, Includes: Ref. 1 - 21

1шт.

1

1959587C1

RETAINER

gear

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING starter field

1шт.

3

NSS

NOT SOLD SEPARAT

ARMATURE ASSEMBLY starter, Includes: Ref. 3A - 5

1шт.

3a

1959588C1

BALL BEARING

BEARING ball, commutator end, now shown

1шт.

4

1959588C1

BALL BEARING

BEARING ball, commutator end

1шт.

5

1959589C1

BALL BEARING

BEARING ball, drive end

1шт.

6

1959590C1

CLUTCH

drive

1шт.

7

1959591C1

ROLLER

retainer

1шт.

8

1959592C1

GEAR

PINION idler

1шт.

9

1959593C1

GEAR

starter

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING drive end

1шт.

11

1959594C1

HEATED GLASS

BRUSH ASSEMBLY starter, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING brush

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME commutator end

1шт.

14

1959595C1

SWITCH

magnetic

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT through, with lock washer, frame

1шт.

16

NSS

NOT SOLD SEPARAT

NUT magnetic switch

1шт.

17

211-209

BALL

grade 200, chrome alloy steel, 11/32"

1шт.

18

1959596C1

SPRING

clutch drive

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT special, frame

1шт.

20

1959597C1

O-RING

starter

2шт.

21

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY frame

1шт.

22

A49803

BREATHER

starter

1шт.
