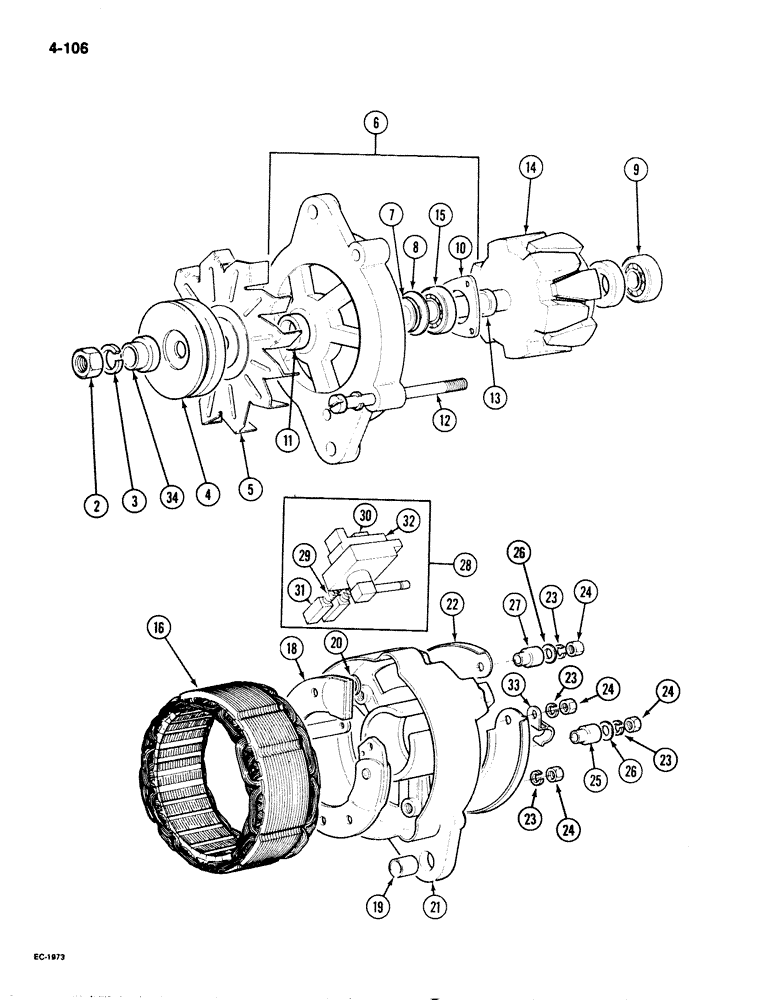

Запчасти Case IH 1825 (4-106) - ALTERNATOR, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1959600C1

ALTERNATOR

ALTERNATOR ASSEMBLY engine, Includes: Ref 2 - 34

1шт.

87297258

REMAN-ALTERNATOR

Remanufactured ALTERNATOR - NA Only

1шт.

87297259

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

87297256

REMAN-ALTERNATOR

Remanufactured ALTERNATOR - NA Only

1шт.

87297257

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

2

1959601C1

NUT

NUT hex

1шт.

3

1959602C1

SPRING WASHER

WASHER lock

1шт.

4

1959603C1

PULLEY

PULLEY alternator

1шт.

5

1959604C1

FAN

FAN alternator

1шт.

6

1959605C1

FRAME

FAN drive end

1шт.

7

1959606C1

SEAL

SEAL flet

1шт.

8

1959607C1

COVER

COVER felt seal

1шт.

9

1959608C1

BALL BEARING

BEARING ball

1шт.

10

1959609C1

PLATE

PLATE retainer

1шт.

11

1959610C1

COLLAR

COLLAR frame

1шт.

12

1959611C1

BOLT

BOLT with lock washer

2шт.

13

1959612C1

SPACER

SPACER rotor

1шт.

14

1959613C1

ARMATURE

ROTOR alternator

1шт.

15

1959614C1

BEARING ASSY

BEARING ball

1шт.

16

1959615C1

YOKE

UNIVERSAL JOINT YOKE STATOR alternator

1шт.

1959616C1

FRAME

FRAME ASSEMBLY end, Includes: Ref. 18 - 34

1шт.

18

1959618C1

RECTIFIER

RECTIFIER alternator

1шт.

19

1959619C1

BUSHING

BUSHING end frame

1шт.

20

1959620C1

WASHER

WASHER insulation

1шт.

21

1959621C1

FRAME

FRAME end

1шт.

22

1959622C1

COVER

COVER end

1шт.

23

1959425C1

LOCK WASHER

WASHER lock

5шт.

24

1959623C1

NUT

NUT hex

5шт.

25

1959624C1

BUSHING

BUSHING insulation

1шт.

26

1959625C1

WASHER

WASHER flat

2шт.

27

1959626C1

BUSHING

BUSHING insulation

1шт.

28

1959627C1

HOLDER

REGULATOR ASSEMBLY voltage, brush, Includes: Ref. 29 - 34

1шт.

29

1959628C1

SPRING

SPRING compression

2шт.

30

1959629C1

WASHER

WASHER insulation

2шт.

31

1959630C1

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

1шт.

32

1959631C1

INSULATOR

INSULATOR terminal

1шт.

33

1959632C1

CLAMP

CLAMP cord

1шт.

34

1959633C1

SPACER

SPACER pulley, drive end

1шт.
