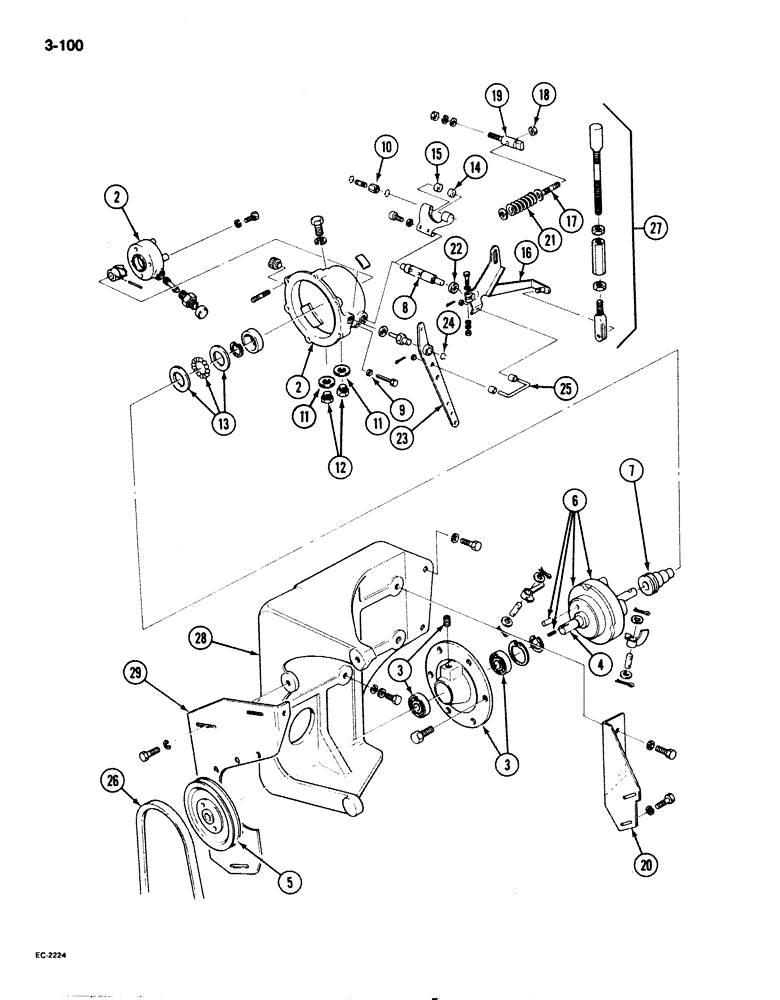

Запчасти Case IH 1825 (3-100) - MECHANICAL GOVERNOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1972263C1

GOVERNOR

ASSEMBLY mechanical, Includes: Ref. 2 - 26

1шт.

2

1972266C1

KIT

governor case

1шт.

3

1972264C1

KIT

governor case bearing

1шт.

4

1972329C1

SHAFT

governor

1шт.

5

1972141C1

PULLEY

governor

1шт.

6

1972265C1

SET OF PARTS

KIT weight holder

1шт.

REF 6 1972265C1 MUST ORDER GOVENOR TO GET WEIGHTS. WEIGHTS NOT SOLD SEPARATELY AS CUSTOMER WOULD NOT BE ABLE TO BALANCE PROPERLY. BUYING GOVENOR ASSURES GETTING BALANCED WEIGHTS FROM MANUFACTURER.

1шт.

7

1972340C1

CLAMP

COLLAR thrust

1шт.

8

1972341C1

SHAFT

fork

1шт.

9

1972344C1

OIL SEAL

oil level gauge

1шт.

10

1972345C1

ROLLER

fork

2шт.

11

1972347C1

SEAL

fork shaft bolt

2шт.

12

1972350C1

PLUG

oil gallery

2шт.

13

1972270C1

BALL BEARING

BEARING thrust ball

1шт.

14

1972358C1

BUSHING

BEARING fork shaft

1шт.

15

1972359C1

BALL BEARING

BEARING fork shaft

1шт.

16

1972365C1

LEVER

governor

1шт.

17

1972367C1

ADJUSTER

ADJUSTING spring

2шт.

18

1972368C1

NUT

adjusting spring

1шт.

19

1972369C1

BOLT

adjusting

1шт.

20

1972372C1

SUPPORT

governor rear

1шт.

21

1972373C1

SPRING

governor

1шт.

22

1972375C1

CAP

fork shaft

1шт.

23

1972376C1

LEVER

governor

1шт.

24

1972377C1

RING

snap

1шт.

25

1972378C1

STEM

ROD tension

1шт.

26

1960027C1

BELT

Governor

1шт.

27

1972267C1

ROD

ASSEMBLY connecting

1шт.

28

1972388C1

BRACKET

governor

1шт.

29

1972389C1

PLATE

governor

1шт.
