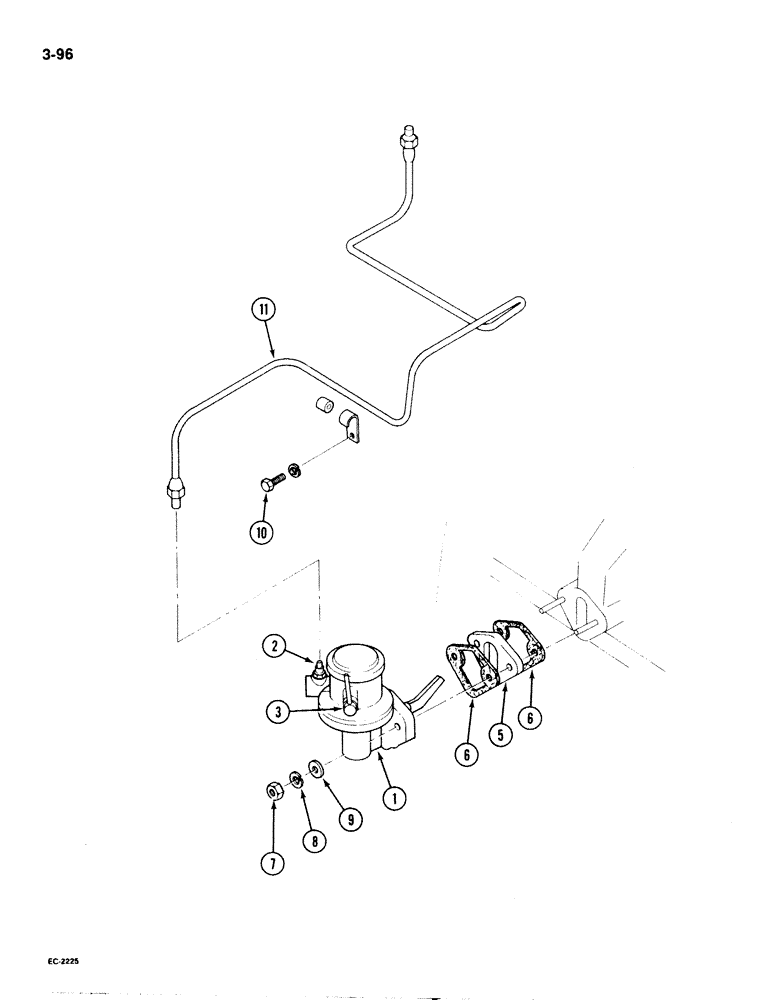

Запчасти Case IH 1825 (3-96) - FUEL PUMP, GASOLINE MODELS (03) - FUEL SYSTEM

1

1972259C1

PUMP

ASSEMBLY fuel, Includes: Ref. 2 - 3

1шт.

2

1972260C1

CONNECTOR, ELEC

CONNECTOR fuel line

1шт.

3

1972338C1

ELBOW

connector

1шт.

1972321C1

SPACER

ASSEMBLY fuel pump, Includes: Ref. 5 - 6

1шт.

5

1972320C1

SPACER

fuel pump

1шт.

6

1972261C1

GASKET

fuel pump

2шт.

7

825-1108

NUT,Hex, M8, Cl 8

hex, plated, 8 mm 1.25

2шт.

8

892-1108

LOCK WASHER,M8

plated M8

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

1972328C1

BOLT

M8 with spring washer

1шт.

11

1972262C1

FUEL TUBE

TUBE, Serial Range: pump-carburetor

1шт.
