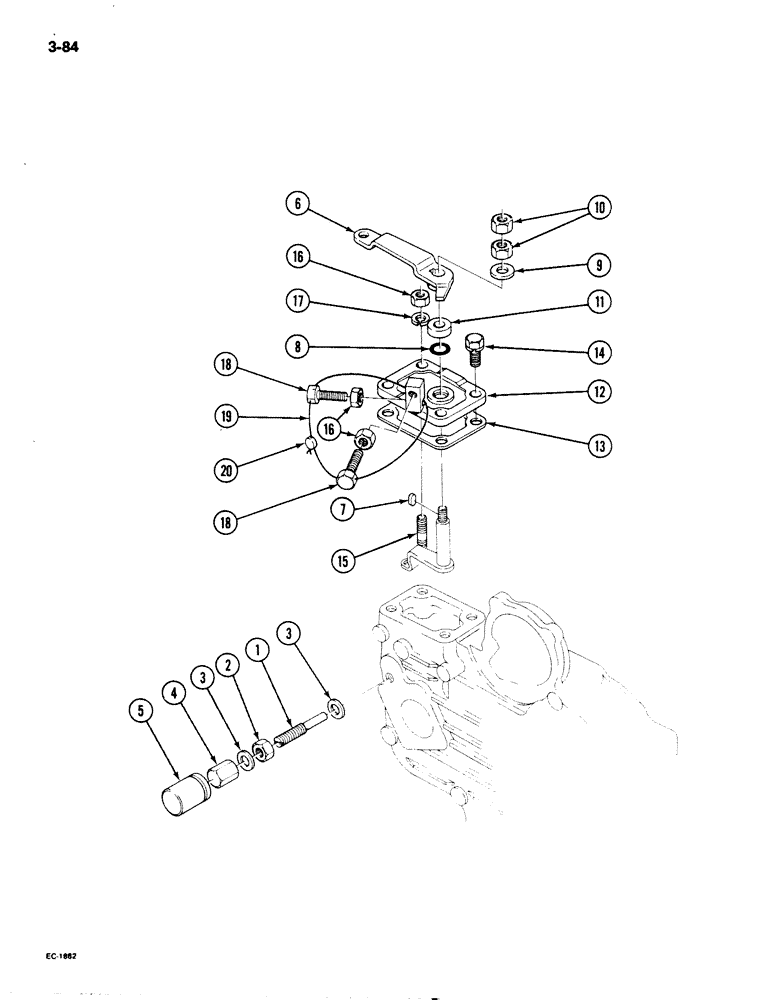

Запчасти Case IH 1825 (3-84) - SPEED CONTROL ASSEMBLY, DIESEL MODELS (03) - FUEL SYSTEM

1

1959401C1

BOLT,M6 x 55mm

adjusting, M6 x 55 mm

1шт.

2

1959402C1

NUT

bolt adjusting, M6

1шт.

3

1959403C1

GASKET

6 x 10 x 1 mm

2шт.

4

1959404C1

NUT

cap, M6

1шт.

5

1959405C1

BUSHING

CAP adjusting nut

1шт.

6

1959406C1

LEVER

speed control

1шт.

7

1959407C1

KEY

feather

1шт.

8

1959408C1

O-RING

plate

1шт.

9

1959409C1

WASHER

flat, cover stud

1шт.

10

1959410C1

NUT

cover stud

2шт.

11

1959411C1

PLATE

friction

1шт.

12

1959412C1

PLATE

speed control

1шт.

13

1959413C1

GASKET

control plate

1шт.

14

1959215C1

BOLT

earing case cover

3шт.

15

1959204C1

STUD

cover

1шт.

16

1959205C1

NUT

cover stud, M6

3шт.

17

1959206C1

SPRING WASHER

lock

1шт.

18

1959339C1

PIN

BOLT spring return stop, M6 x 30 mm

2шт.

19

NSS

NOT SOLD SEPARAT

WIRE seal

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL wire

1шт.
