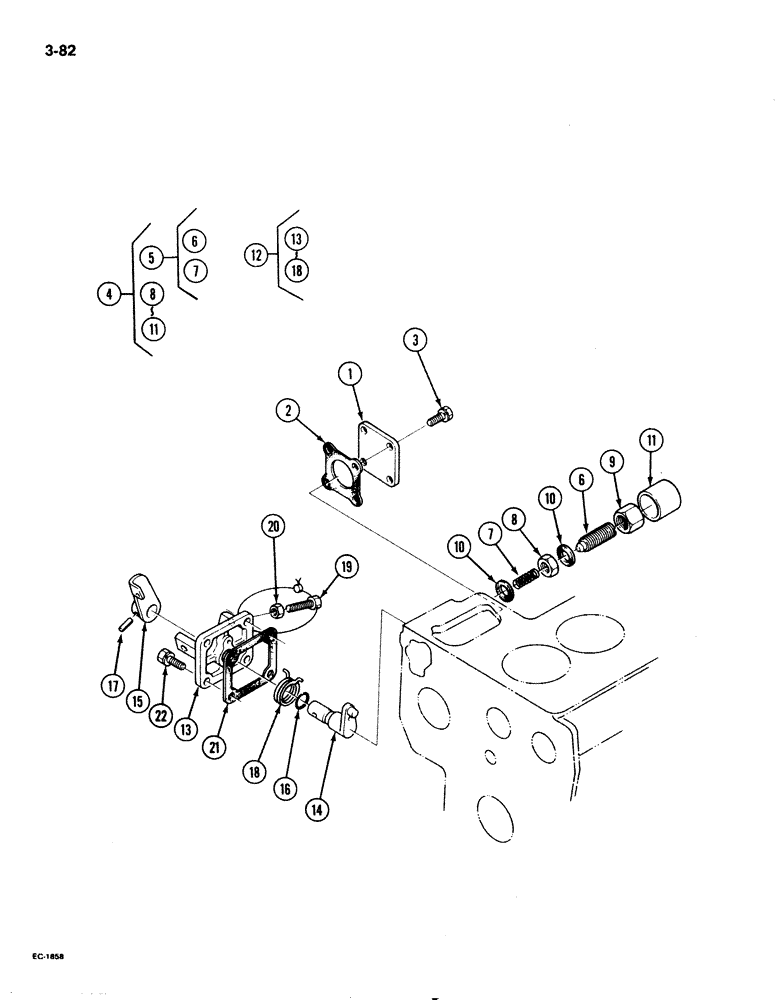

Запчасти Case IH 1825 (3-82) - ENGINE STOP LEVER, DIESEL MODELS (03) - FUEL SYSTEM

1

1959320C1

PLATE

COVER oil pump

1шт.

2

1959321C1

GASKET

oil pump

1шт.

3

1959322C1

BOLT

oil pump cover

4шт.

1959323C1

ADJUSTER

IDLER KIT engine, Includes: Ref. 1959324C1, 6 - 11

1шт.

1959324C1

BOLT,Adj

SCREW ASSEMBLY adjusting, Includes: Ref. 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW adjusting, order screw assembly 1959324C1

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING order screw assembly 1959324C1

1шт.

8

1959327C1

NUT

M8

1шт.

9

1959328C1

NUT

cap, M8

1шт.

10

1959329C1

WASHER

GASKET adjusting bolt, 8.3 x 13 x 15 mm

2шт.

11

1959330C1

CAP,M14.6 x 19mm

adjusting bolt

2шт.

1959331C1

LEVER

ASSEMBLY engine stop, Includes: Ref. 13 - 18

1шт.

13

1959332C1

COVER

injection pump

1шт.

14

1959333C1

SHAFT

ASSEMBLY lever, Includes: Ref. 15

1шт.

15

1959335C1

LEVER

engine stop

1шт.

16

1959336C1

O-RING

shaft

1шт.

17

1959337C1

PIN

spring

1шт.

18

1959338C1

SPRING

return

1шт.

19

1959339C1

PIN

BOLT spring return stop, M6 x 30 mm

1шт.

20

1959205C1

NUT

cover stud, M6

1шт.

21

1959342C1

GASKET

breather

1шт.

22

1959155C1

BOLT

BOLT cover

4шт.
