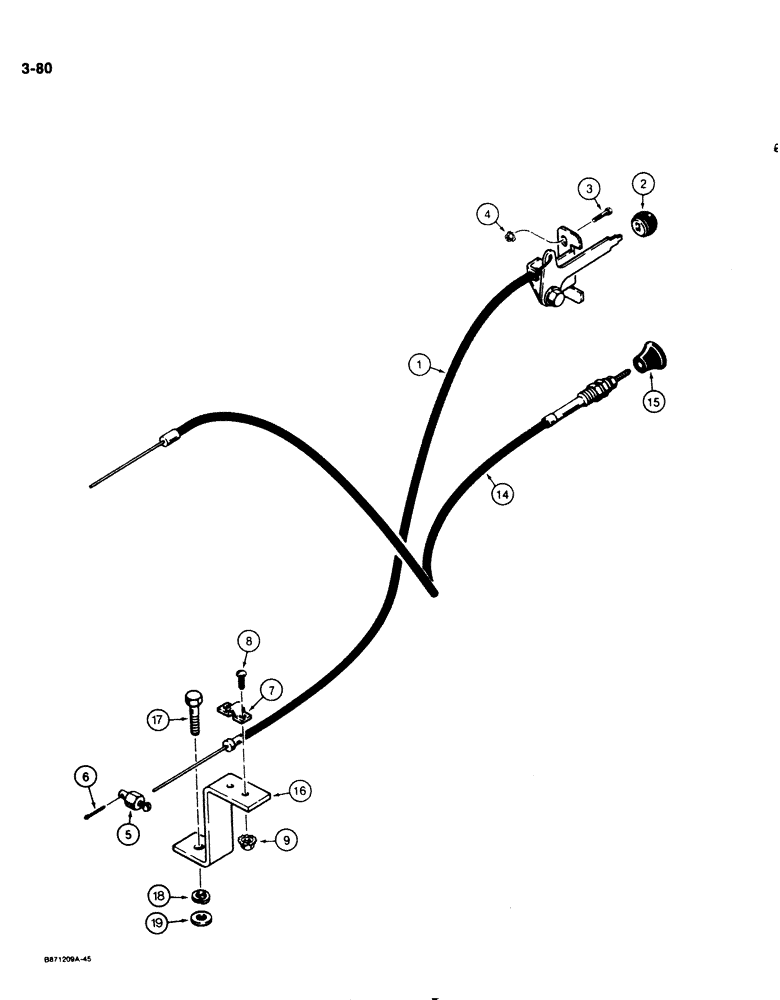

Запчасти Case IH 1825 (3-80) - ENGINE CONTROLS, GASOLINE MODELS (03) - FUEL SYSTEM

1

D121231

CABLE

throttle control

1шт.

2

H244434

KNOB

throttle control cable

1шт.

3

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, plated, no. 10 24 NC x 5/8"

2шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT with lock washer, plated, No. 10 24 NC

2шт.

5

E20993

PIVOT

throttle cable, replaces D92852

1шт.

6

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

7

E20291

CLAMP

throttle cable, replaces D81500

1шт.

8

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

machine, pan head slotted, plated, No. 10 24 NC x 1/2"

2шт.

9

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT with lock washer, plated, No. 10 24 NC

2шт.

14

D137836

CABLE

choke

1шт.

15

D91274

KNOB

choke

1шт.

16

D137826

BRACKET

throttle cable mounting

1шт.

17

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

to engine, M8 - 1.5 x 25 mm long

1шт.

18

892-1108

LOCK WASHER,M8

to engine M8

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

to engine M8 x 16 x 1.6

1шт.
