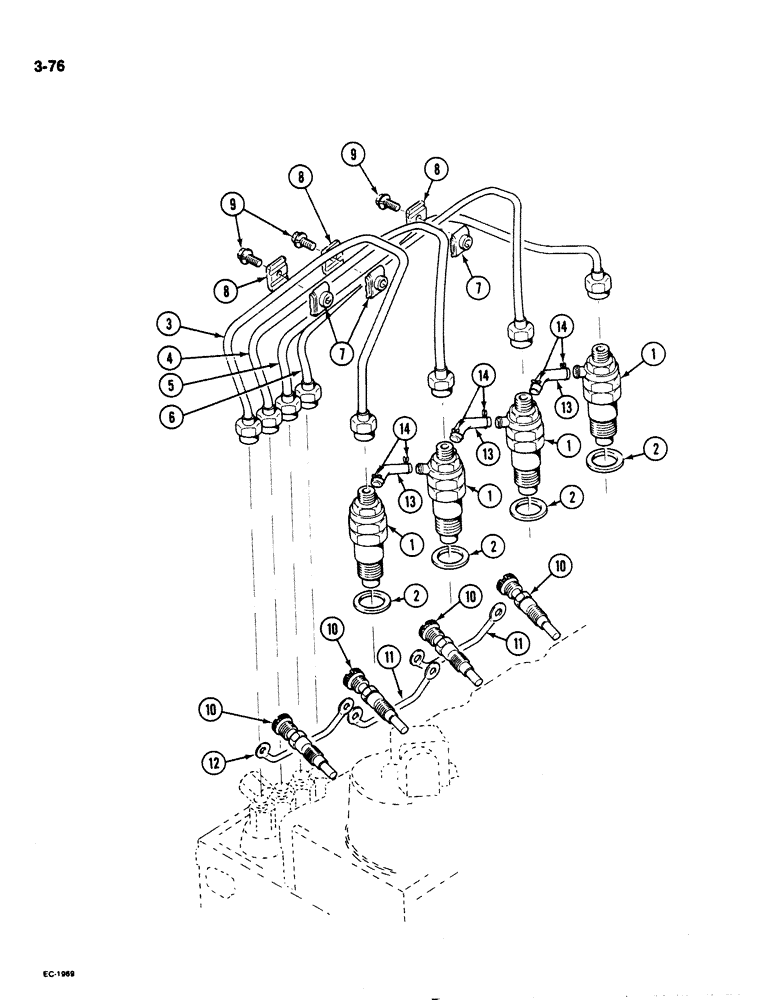

Запчасти Case IH 1825 (3-76) - FUEL INJECTION SYSTEM, DIESEL MODELS (03) - FUEL SYSTEM

1

1959384C1

NOZZLE CAP

HOLDER ASSEMBLY nozzle, parts lists Fig. 3-90

4шт.

2

1959385C1

WASHER

GASKET nozzle holder

4шт.

3

1959389C1

PIPE

fuel injection 1

1шт.

4

1959390C1

PIPE

fuel injection 2

1шт.

5

1959391C1

PIPE

fuel injection 3

1шт.

6

1959392C1

PIPE

fuel injection 4

1шт.

7

1959393C1

HOSE CLIP

CLAMP injection pipe

3шт.

8

1959394C1

HOSE CLIP

CLAMP injection pipe

3шт.

9

1959395C1

SCREW

with washer

3шт.

10

1959396C1

GLOW PLUG

PLUG glow

4шт.

11

1959397C1

ELECTRICAL WIRE

CORD glow plug

2шт.

12

1959398C1

ELECTRICAL WIRE

CORD glow plug

1шт.

13

1959399C1

PIPE

ASSEMBLY overflow, Includes: Ref. 14

3шт.

14

299486R1

HOSE CLAMP,#7, 7/16", Spring

CLIP pipe

6шт.
