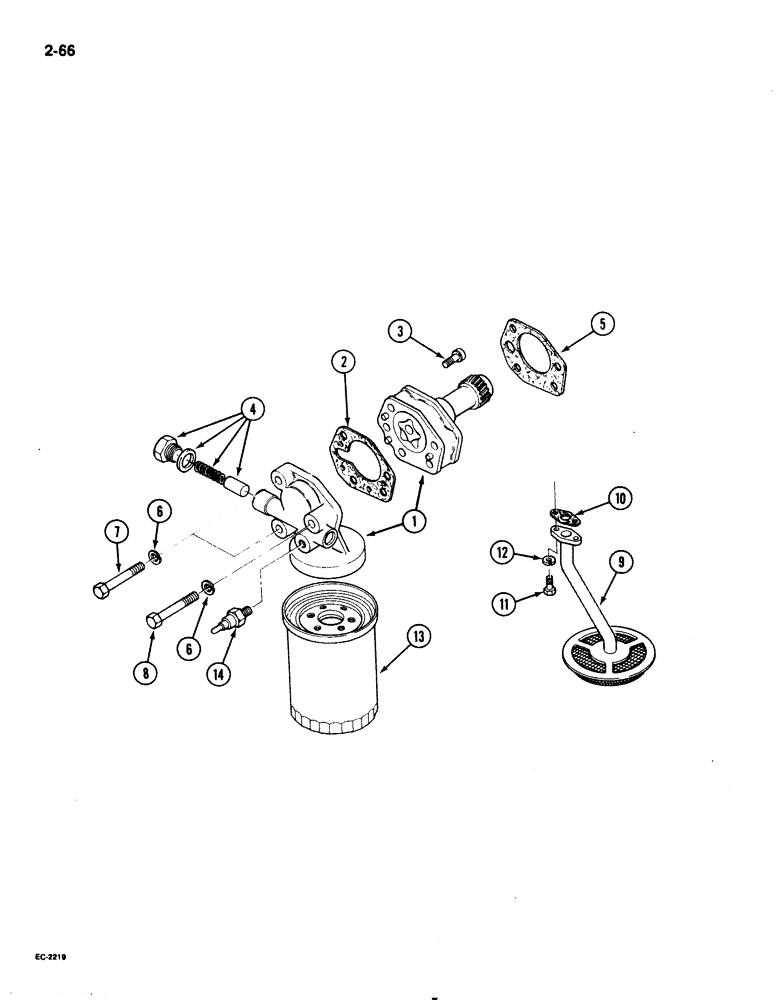

Запчасти Case IH 1825 (2-66) - OIL PUMP AND FILTER, GASOLINE MODELS (02) - ENGINE

1972197C1

PUMP

ASSEMBLY oil, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP oil

1шт.

2

1972245C1

GASKET

oil pump cover

1шт.

3

1972246C1

CAPTIVE WASHER SCREW

SCREW pan head with lock washer

1шт.

4

1972247C1

VALVE

regulator

1шт.

5

1972198C1

GASKET

oil pump to cylinder block

1шт.

6

892-1108

LOCK WASHER,M8

plated M8

3шт.

7

1972199C1

BOLT

oil pump

2шт.

8

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

9

1972200C1

STRAINER ASSY.

STRAINER oil

1шт.

10

1972201C1

GASKET

oil strainer

1шт.

11

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

892-1108

LOCK WASHER,M8

plated M8

2шт.

13

1972202C1

ELEMENT

oil filter

1шт.

14

1972203C1

SWITCH

- oil pressure

1шт.
