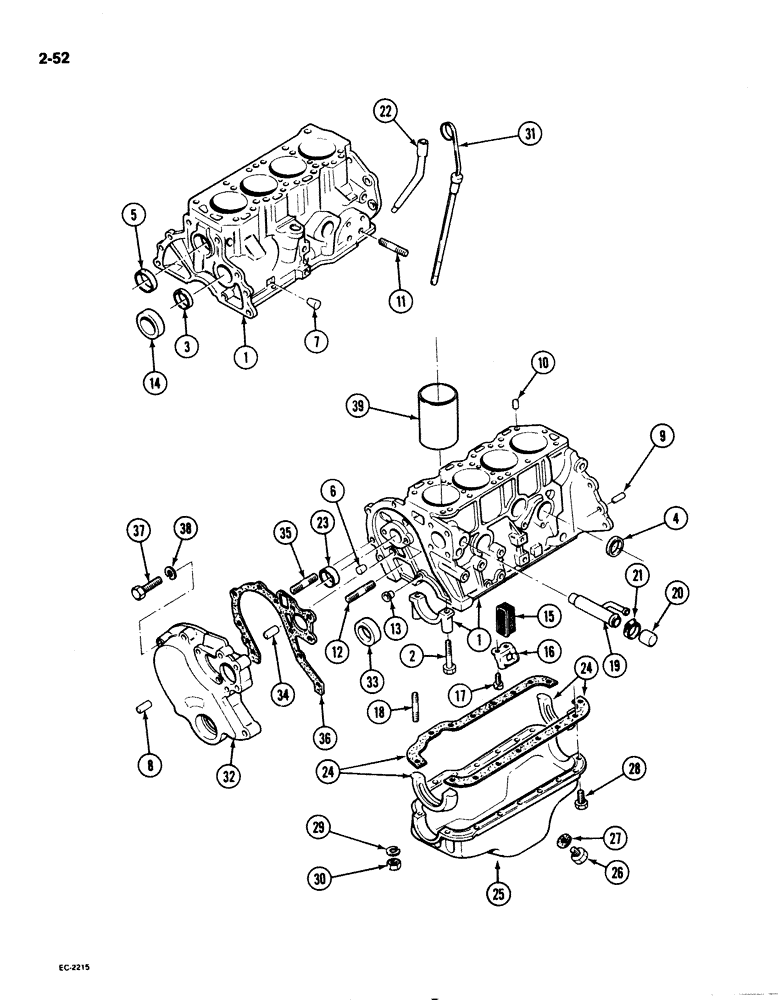

Запчасти Case IH 1825 (2-52) - CYLINDER BLOCK AND OIL PAN, GASOLINE MODELS (02) - ENGINE

1972101C1

CYLINDER BLOCK

BLOCK ASSEMBLY cylinder, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder, order cylinder block assembly 1972101C1

1шт.

2

1972103C1

BOLT

main bearing cap

10шт.

3

1972104C1

PLUG

cam bearing

1шт.

4

1972331C1

PLUG

core hole

3шт.

5

1972332C1

PLUG

core hole

1шт.

6

1972333C1

PLUG

taper, oil gallery

2шт.

7

1972105C1

PLUG

taper, oil gallery

7шт.

8

1972106C1

PIN, SPLIT (COTTER)

PIN dowel, front cover

2шт.

9

1972107C1

DOWEL

PIN dowel, rear block face

2шт.

10

1972108C1

DOWEL

PIN dowel, cylinder head locating

2шт.

11

1972324C1

STUD

fuel pump

2шт.

12

1972325C1

STUD

water pump

3шт.

13

1972109C1

PORT

ORIFICE oil gallery

1шт.

14

1972227C1

OIL SEAL

camshaft rear oil

1шт.

15

1972110C1

FILTER

SCREEN oil pickup

1шт.

16

1972111C1

BRACKET

BAFFLE crankcase

1шт.

17

1972334C1

SCREW

M6 pan head machine

2шт.

18

1972322C1

STUD

oil pan M6 x 25 mm

2шт.

19

1972112C1

SUCTION PIPE

PIPE water pump suction

1шт.

20

1972113C1

PLUG

CAP connector

1шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

1шт.

FOOTNOTE

1шт.

d122404 sender is used for diesel also

1шт.

22

1972114C1

TUBE

- dipstick

2шт.

23

1972229C1

BUSHING

- set, camshaft

1шт.

23

1972290C1

BUSHING

- set, camshaft (0.25 mm undersize)

1шт.

23

1972291C1

BUSHING

- set, camshaft (0.50 mm undersize)

1шт.

23

1972292C1

BUSHING

- set, camshaft (0.75 mm undersize)

1шт.

24

1972230C1

OIL PAN GASKET SET

- set, oil pan

1шт.

25

1972115C1

HOUSING

PAN ASSEMBLY - oil, Includes: Ref. 26 and 27

1шт.

26

1972116C1

PLUG

- drain

1шт.

27

1972117C1

GASKET

- drain plug

1шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

12шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

16шт.

30

825-1406

NUT,M6, Cl 8

4шт.

31

1972118C1

DIPSTICK

- oil level

1шт.

32

1972119C1

COVER

- timing chain

1шт.

33

1972228C1

OIL SEAL

- crankshaft, front, oil

1шт.

34

1972106C1

PIN, SPLIT (COTTER)

PIN - dowel, water pump

2шт.

35

1972322C1

STUD

- timing chain cover, 6 x 25 mm

2шт.

36

1972121C1

GASKET

- timing chain cover

1шт.

37

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

6шт.

38

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

39

1972293C1

SLEEVE CYLINDER

LINER - cylinder (4.00 mm oversize)

4шт.

39

1972294C1

SLEEVE CYLINDER

LINER - cylinder (4.50 mm oversize)

4шт.

39

1972295C1

SLEEVE CYLINDER

LINER - cylinder (5.00 mm oversize)

4шт.
