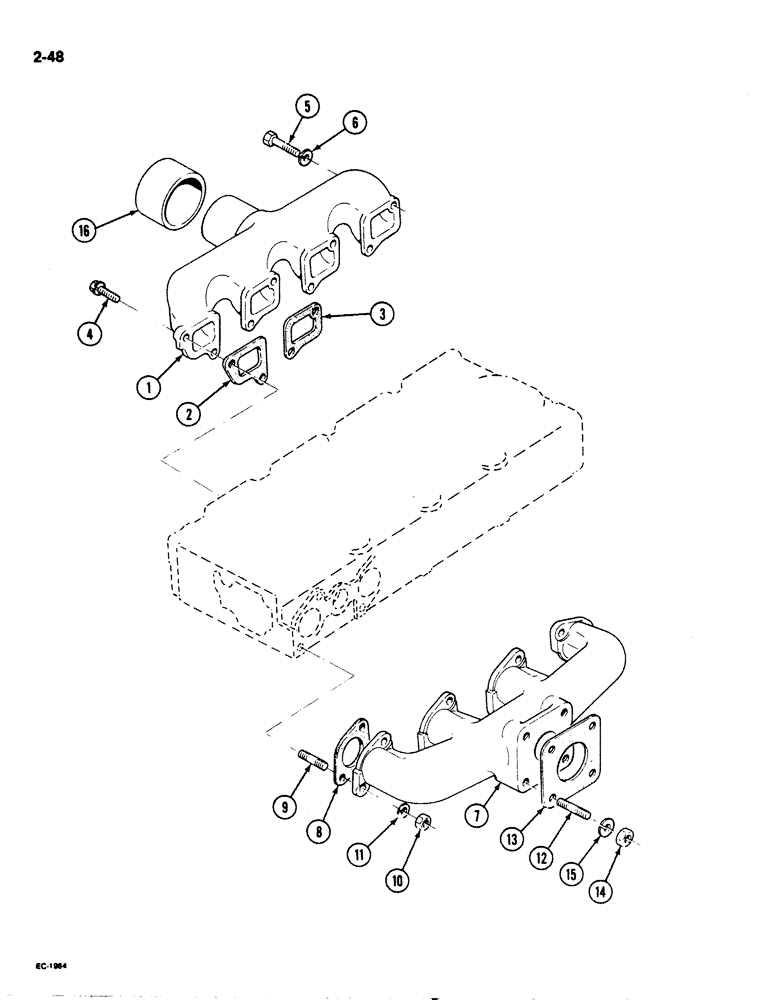

Запчасти Case IH 1825 (2-48) - INTAKE MANIFOLD AND EXHAUST MANIFOLD, DIESEL MODELS (02) - ENGINE

1

1959255C1

MANIFOLD

intake

1шт.

2

1959272C1

MANIFOLD GASKET

intake manifold, No. 1 cylinder

1шт.

3

1959273C1

MANIFOLD GASKET

intake manifold No. 2, No. 3, and No. 4 cylinders

3шт.

4

1959215C1

BOLT

bearing case cover

5шт.

5

1959259C1

BOLT

manifold

3шт.

6

1959206C1

SPRING WASHER

lock

3шт.

7

1959261C1

MANIFOLD

exhaust

1шт.

8

1959262C1

GASKET

exhaust manifold

4шт.

9

1959263C1

STUD

exhaust manifold, M6 x 28 mm

8шт.

10

1959205C1

NUT

cover stud, M6

8шт.

11

1959206C1

SPRING WASHER

lock

8шт.

12

1959265C1

STUD

M10

4шт.

13

1959267C1

GASKET

muffler

1шт.

14

1959269C1

NUT

M10

4шт.

15

1959171C1

SPRING WASHER

lock

4шт.

16

1959271C1

CAP

intake manifold

1шт.
