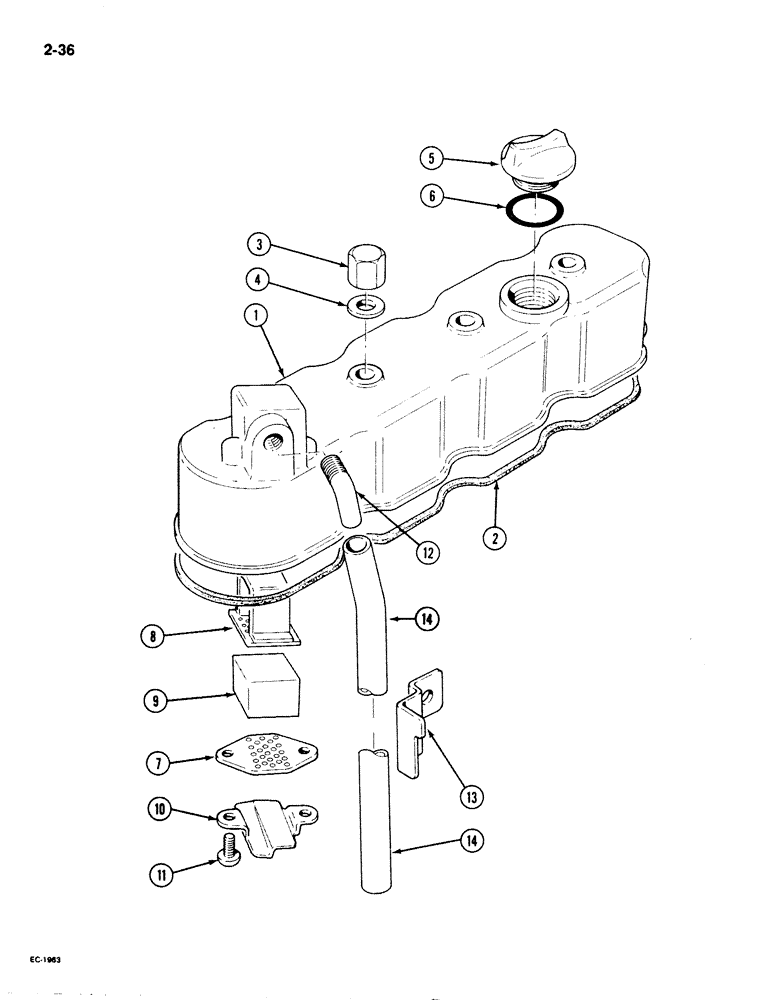

Запчасти Case IH 1825 (2-36) - CYLINDER HEAD COVER, DIESEL MODELS (02) - ENGINE

1

1959230C1

COVER

cylinder head

1шт.

2

1959232C1

GASKET

cylinder head cover

1шт.

3

1959233C1

NUT

cap

4шт.

4

1959234C1

WASHER

GASKET nut

4шт.

5

1959238C1

CAP

oil filler

1шт.

6

1959239C1

O-RING

oil filler cap

1шт.

7

1959240C1

PLATE

breather element, lower

1шт.

8

1959246C1

PLATE

breather element, upper

1шт.

9

1959247C1

FILTER, ELEMENT

ELEMENT breather

1шт.

10

1959248C1

SHIELD

breather oil

1шт.

11

1959249C1

SCREW

breather

2шт.

12

1959250C1

JOINING ELEMENT

ELBOW breather tube

1шт.

13

1959251C1

CLAMP

breather tube

1шт.

14

1959253C1

PIPE,12 mm ID, 16 mm OD, 490 mm Length

TUBE breather

1шт.
