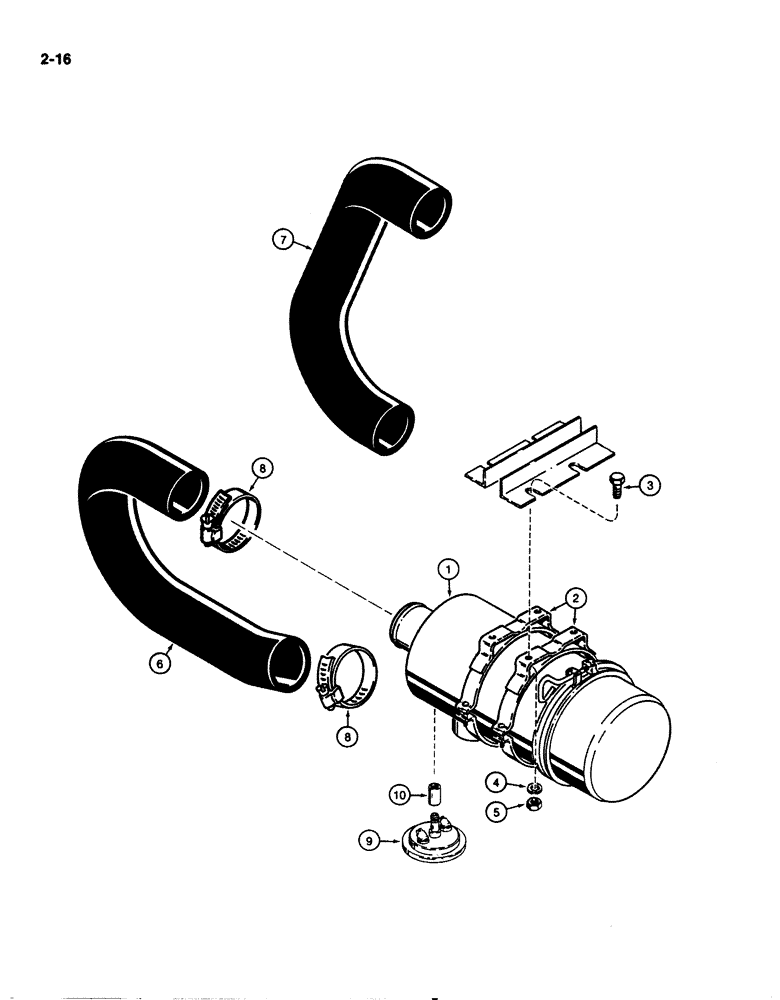

Запчасти Case IH 1825 (2-16) - AIR CLEANER AND MOUNTING PARTS (02) - ENGINE

1

D82572

AIR CLEANER

CLEANER ASSEMBLY air, engine, parts list Fig. 2-18

1шт.

2

D27245

COLLAR CLAMP

BAND air cleaner mounting

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D137047

INTAKE AIR HOSE,44.50 mm ID x 188.00 mm, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on gasoline models only 44.50 mm ID x 188.00 mm, SAE 20R4 Class D2

1шт.

7

D135088

INTAKE AIR HOSE,44.75 mm ID, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on diesel models only 44.75 mm ID, SAE 20R4 Class D2

1шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

9

L103131

INDICATOR

SENDER air cleaner restriction indicator

1шт.

10

221-1335

COUPLING,Pipe, 1/8" NPT

plated Pipe, 1/8" NPT

1шт.

11

D36264

FITTING

ADAPTER special, includes safety filter, not shown

1шт.
