(9-228) - ENGINE DECALS, DIESEL MODELS

Запчасти Case IH 1825 (9-228) - ENGINE DECALS, DIESEL MODELS (09) - CHASSIS/ATTACHMENTS

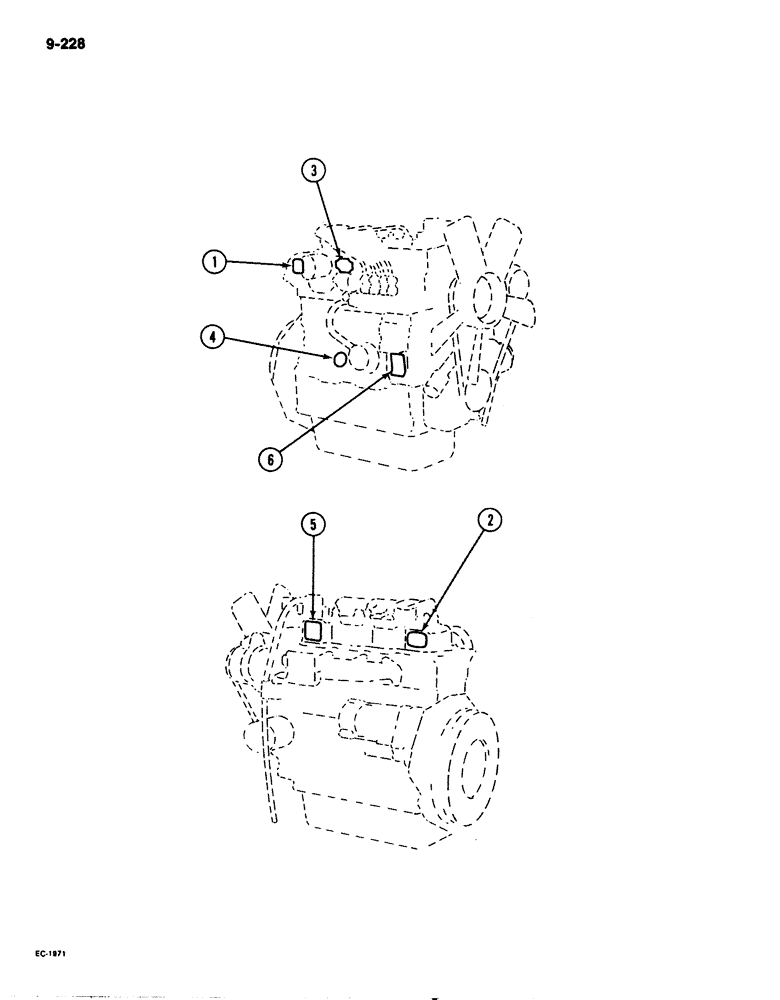

Схема запчастей Case IH 1825 - (9-228) - ENGINE DECALS, DIESEL MODELS (09) - CHASSIS/ATTACHMENTS
3
1
6
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1959521C1

DECAL

glow plug

1шт.

2

1959522C1

DECAL

oil

1шт.

3

1959523C1

DECAL

instruction, oil filter

1шт.

4

1959524C1

DECAL

instruction, fuel injection pump

1шт.

5

1959525C1

DECAL

NAMEPLATE engine

1шт.

6

1959527C1

DECAL

coolant draining

1шт.
