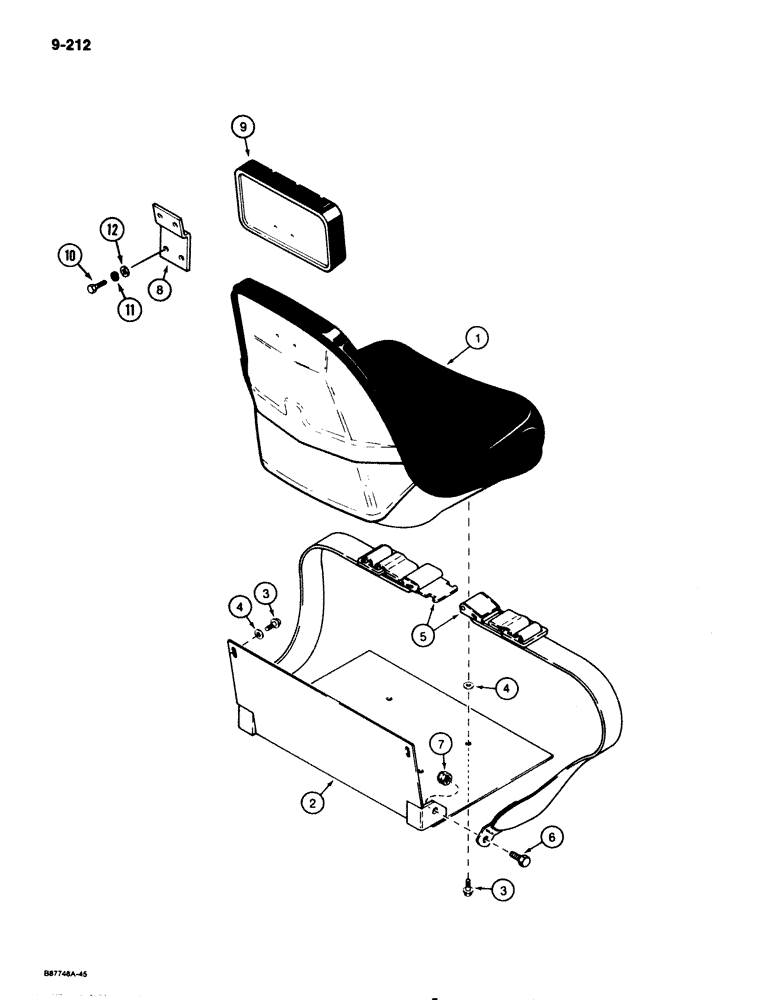

Запчасти Case IH 1825 (9-212) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

E20007

SEAT

ASSEMBLY operator, complete

1шт.

2

D135014

PLATE

SUPPORT seat

1шт.

3

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

4

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

6шт.

5

D133868

SAFETY BELT ,2.00" W

2.00" W

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" 13 NC

2шт.

8

E20009

BRACKET

head rest

1шт.

9

E20008

BACKREST

PAD head rest

1шт.

10

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

hex, 5/16" 24 NF x 1 inch

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

4шт.
