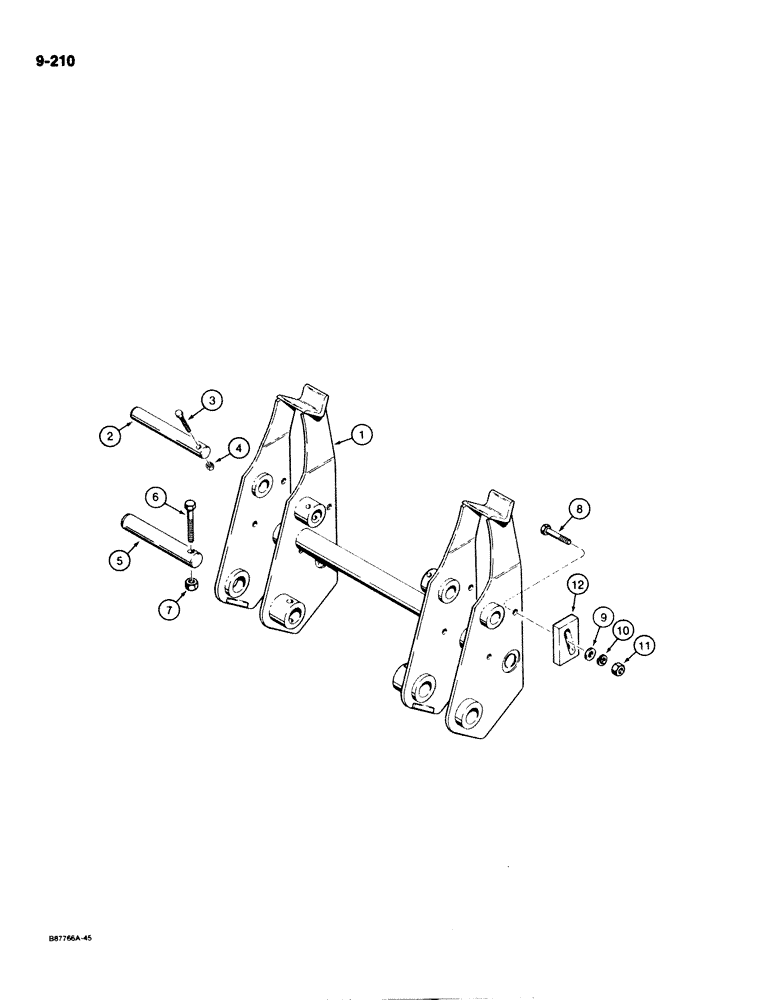

Запчасти Case IH 1825 (9-210) - TOOL TACH (09) - CHASSIS/ATTACHMENTS

1

D138769

FRAME ASSY

FRAME tool tach, equipment

1шт.

2

D138890

PIN,22.22mm OD x 148mm L

tilt cylinder rod

2шт.

3

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

hex head, grade 8, 5/16" 18 NC x 2"

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" 18 NC

2шт.

5

D138891

PIN,25.4mm OD x 149mm L

tach pivot at lift frame

2шт.

6

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

7

131-217

LOCK NUT

NUT hex, self locking, plated, grade 8, 3/8" 16 NC

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

T40044

WEDGE

BLOCK bucket aligning, Replaces D138932

2шт.
