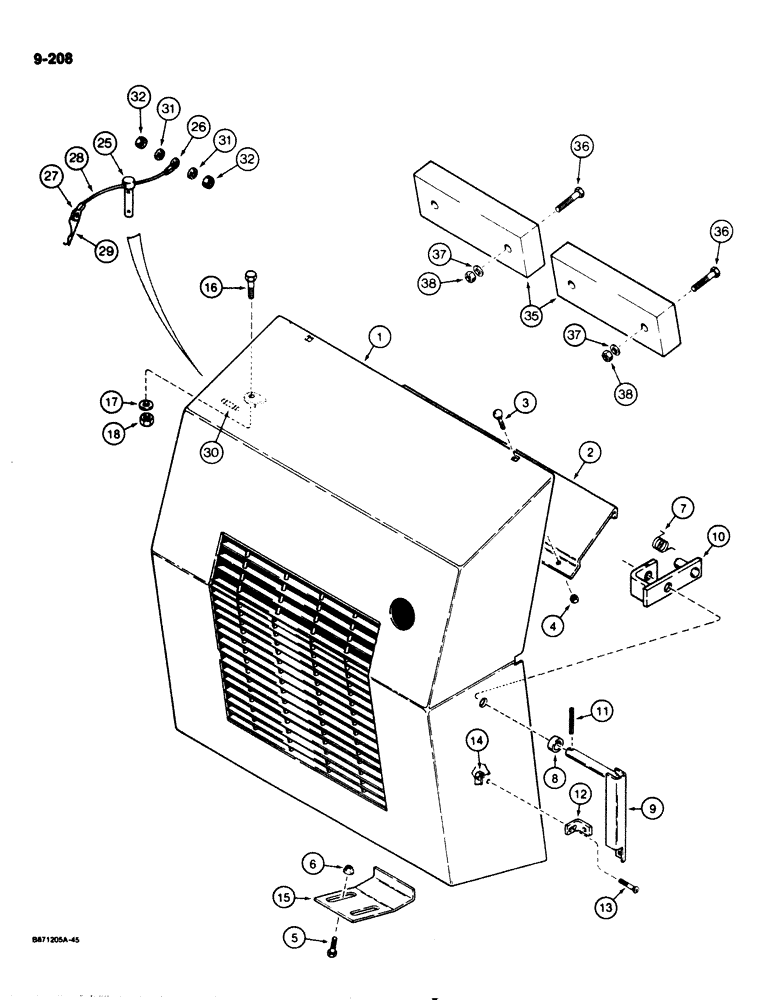

Запчасти Case IH 1825 (9-208) - REAR COUNTERWEIGHT AND SWING OUT DOOR (09) - CHASSIS/ATTACHMENTS

1

E20221

DOOR

rear swing out

1шт.

2

D137753

COVER

rear door

1шт.

3

E98067

SCREW

CARRIAGE BOLT special

2шт.

4

E98788

LOCK NUT

hex, special

2шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, flange type, special locking, plated, 3/8" 16 NC

2шт.

7

D132020

SPRING

latch

1шт.

8

D134827

SPACER

latch

1шт.

9

D134824

HANDLE

rear door

1шт.

10

D134821

LATCH

rear door

1шт.

11

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

12

D124776

BRACKET

ANGLE latch positioning, outer

1шт.

13

E84703

BOLT

M8 x 1.5 x 25 mm long

1шт.

14

E20231

NUT

hex, flange type, special locking, M8

1шт.

15

H434914

SUPPORT

BRACKET rear door, lower

1шт.

16

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

17

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

18

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" 13 NC

2шт.

25

E99295

PIN

RETAINING pin, open door, TBG, Germany

1шт.

26

E99860

PIN

EYE wire, cable end 0.BA, TBG, Germany

1шт.

27

E99858

ROD

EYE wire, cable end, 4.BA, TBG, Germany

1шт.

28

E98861

CABLE

WIRE nylon coated, TBG, Germany

1шт.

29

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

30

NSS

NOT SOLD SEPARAT

STUD M6 x 16 mm long, TBG, Germany

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

TBG, Germany M6

2шт.

32

825-1106

NUT,Hex, M6, Cl 8

hex, plated, 6 mm 1, TBG, Germany

2шт.

35

E99992

WEIGHT

COUNTERWEIGHT rear

2шт.

36

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

37

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

38

129-107

NUT,5/8"-11, G5

4шт.
