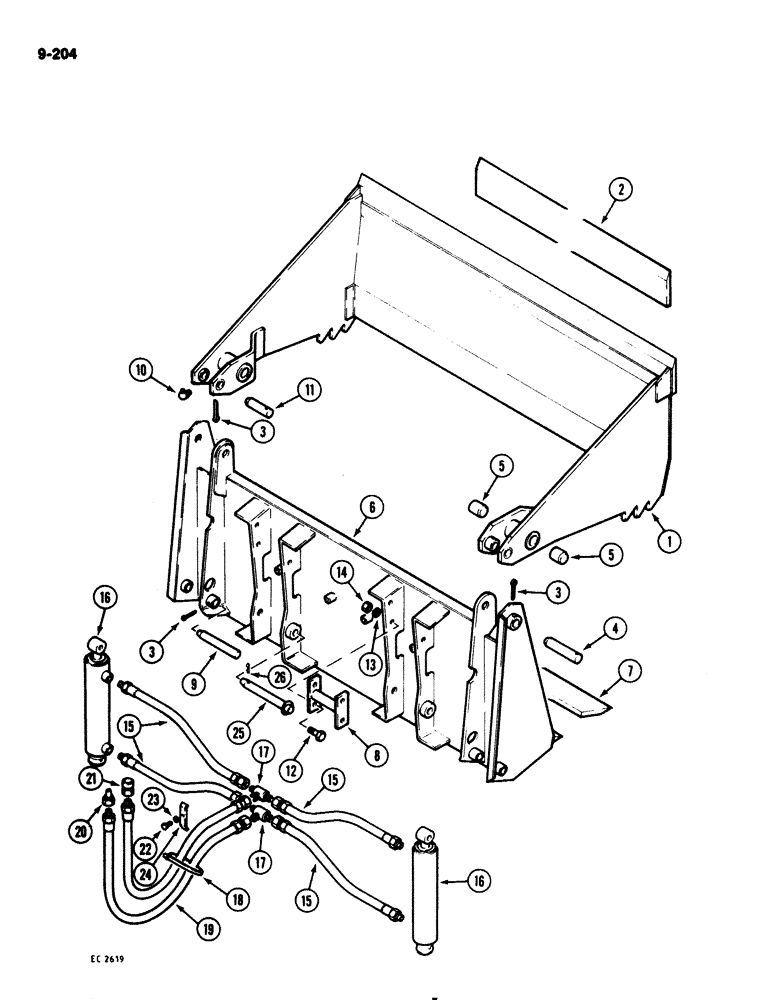

Запчасти Case IH 1825 (9-204) - 49 INCH (1245 MM) WIDE 4-IN-1 BUCKET (09) - CHASSIS/ATTACHMENTS

E99795

BUCKET

ASSEMBLY 49 inch, 1245 mm

1шт.

1

E99790

JAW

CLAM ASSEMBLY bucket

1шт.

2

D138861

EDGE, CUTTING

CUTTING EDGE front

1шт.

3

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

6шт.

4

E99762

PIVOT PIN

PIN pivot

2шт.

5

E99761

BUSHING

clam pivots

4шт.

6

E99789

BLADE

DOZER ASSEMBLY bucket

1шт.

7

E99753

EDGE, CUTTING

EDGE cutting

1шт.

8

D61308

PIN

tool tach

2шт.

9

E99764

PIN

cylinder bottom

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

11

E99763

PIN

cylinder top

2шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

E99792

HOSE

, Serial Range: tee-cyliners

4шт.

16

E99740

CYLINDER

ASSEMBLY 4 IN 1, see Fig. 8 194

2шт.

17

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

STRAP tie, hose

2шт.

19

E99965

HOSE

lift, Serial Range: frame-tee

2шт.

20

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

1шт.

21

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

D40236

CLAMP

hose

4шт.

25

D138886

PIN

tool tach

2шт.

26

136-521

PIN

hair, cotter

2шт.
