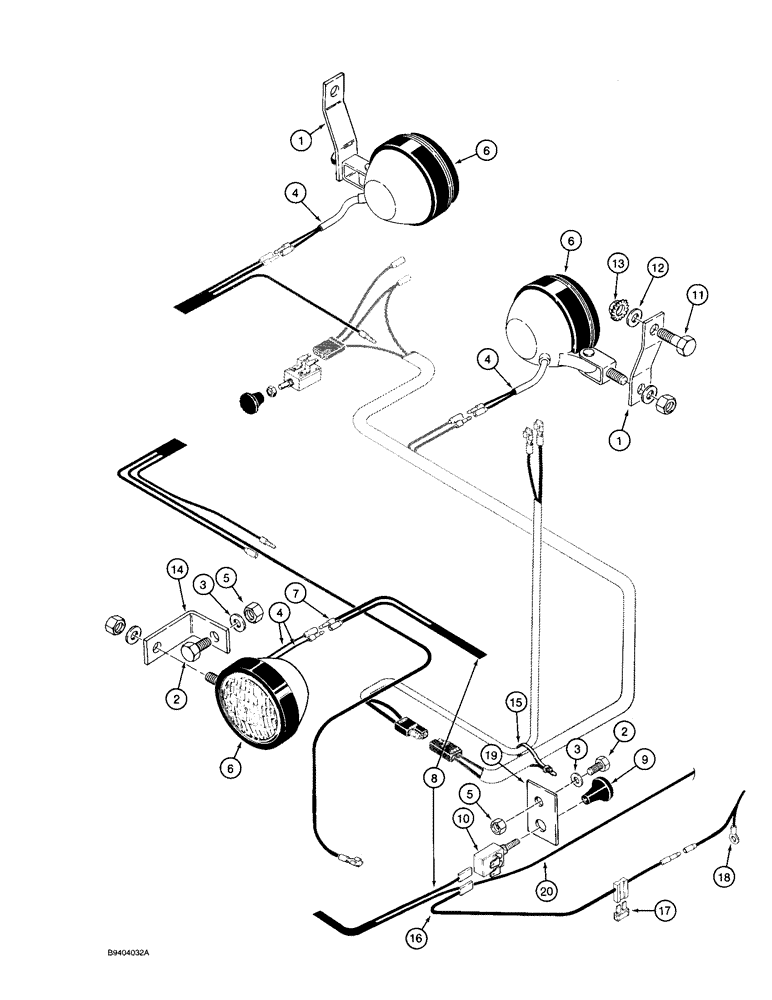

Запчасти Case IH 1825 (4-36) - ROAD LAMPS AND WIRING, SPECIAL PARTS FOR GERMAN (TBG), P.I.N. JAF0096608 AND AFTER (04) - ELECTRICAL SYSTEMS

1

116502A1

LUG

BRACKET - mounting, lamp

2шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

111159A1

HARNESS

- lamp to main wiring harness

3шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

120139A1

LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY - complete

3шт.

7

122182A1

ELECTRICAL WIRE

WIRE - ground, tail lamp

1шт.

8

102332A1

ELECTRICAL WIRE

WIRE -, Serial Range: taillamp-switch

1шт.

9

108314A1

BUTTON

KNOB - switch

1шт.

10

D74330

SWITCH

- lamp

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

116527A1

BRACKET

- mounting, tail lamp

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, harness

1шт.

16

102331A1

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-switch

1шт.

17

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

18

102330A1

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-battery

1шт.

19

103892A1

LARGE PLATE

PLATE - mounting, switch

1шт.

20

123900A1

ELECTRICAL WIRE

WIRE - main harness to No. 6 terminal in roadlamp box

1шт.
