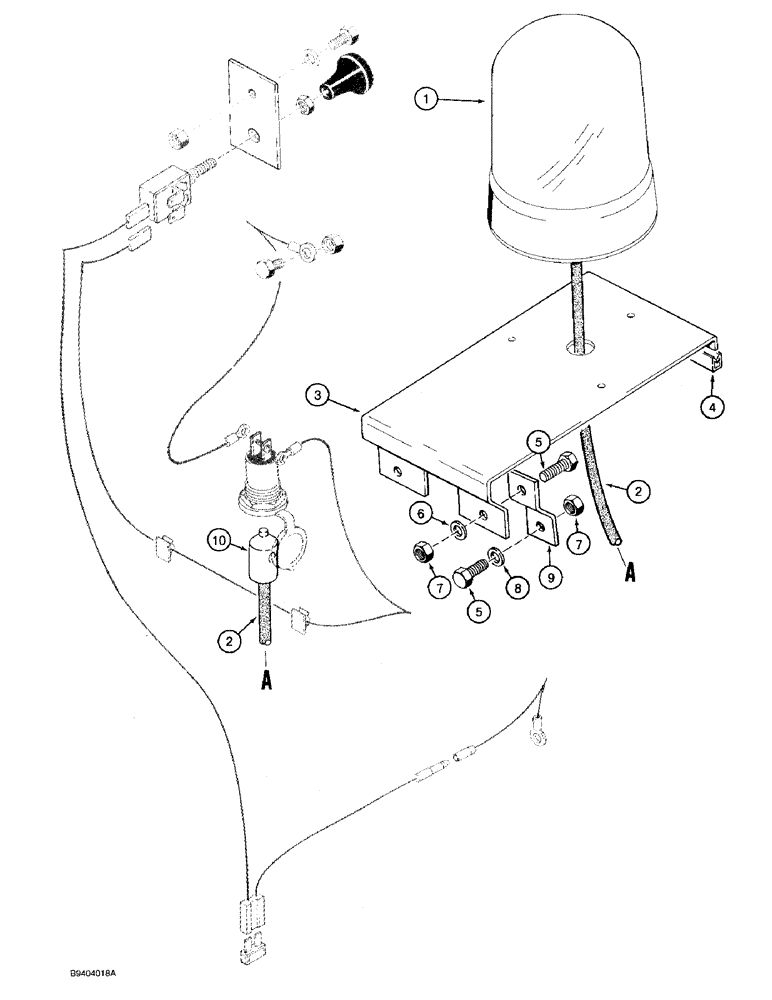

Запчасти Case IH 1825 (4-35A) - ROTATING BEACON, EUROPEAN DIESEL MODELS P.I.N. JAF0140357 AND AFTER (04) - ELECTRICAL SYSTEMS

1

E99128

BEACON ROTATING

BEACON - rotating

1шт.

2

142213A1

HARNESS - beacon to electrical outlet

1шт.

3

109264A1

SUPPORT

BRACKET - beacon mounting

1шт.

4

D60179

RUBBER STRIP

TRIM - edge, 6-1/2 inch long, cut from F42827 bulk, see below

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

6

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

109265A1

BRACKET

-mounting, rear

1шт.

10

142212A1

SOCKET

CONNECTOR - electrical, male

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long, use to make Ref. 4

1шт.
