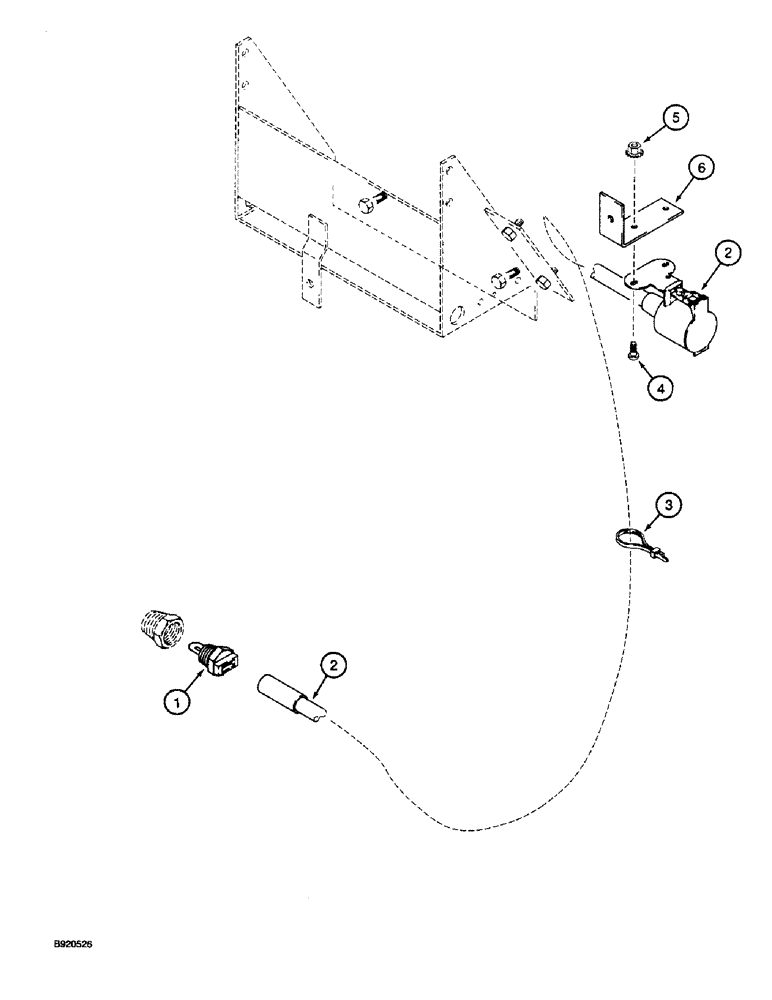

Запчасти Case IH 1825 (4-32) - COLD START - 240 VOLT, EUROPEAN MODELS (04) - ELECTRICAL SYSTEMS

1

106511A1

HEATER ASSY.

HEATER - cylinder block, 240 volt

1шт.

2

112837A1

PLUG

CONNECTOR - electrical, was 106513A1

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

5

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

6

109693A1

SUPPORT

BRACKET - mounting, electrical connector

1шт.
