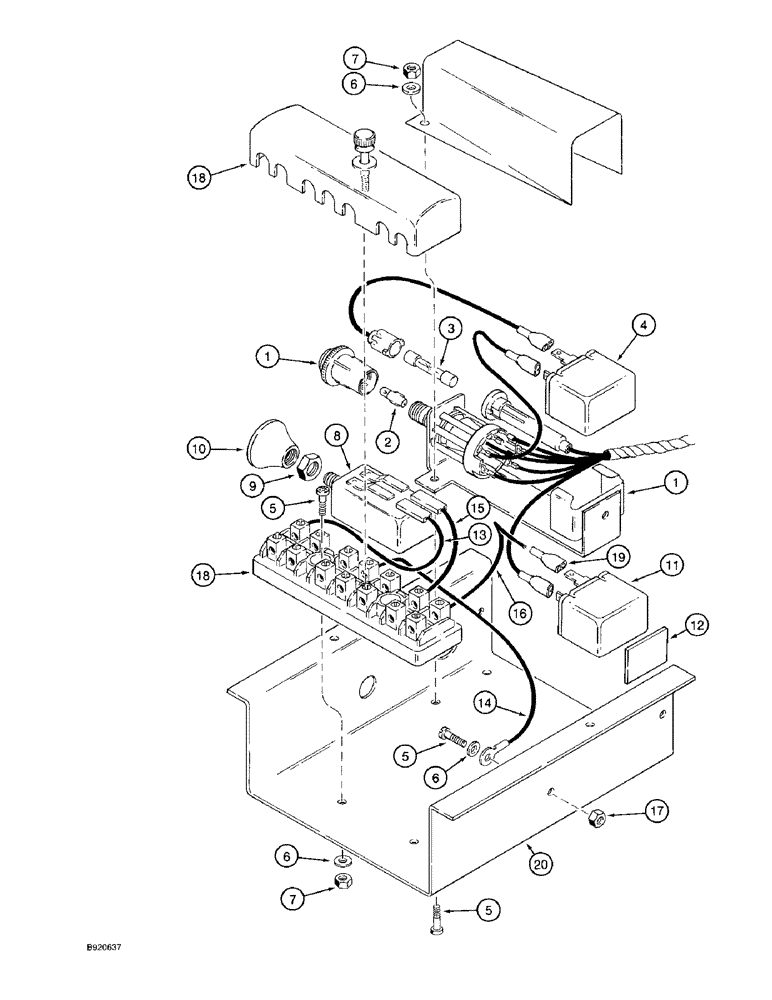

Запчасти Case IH 1825 (4-23G) - ROAD LAMP SWITCH ASSEMBLY, EUROPEAN MODELS (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

SWITCH ASSEMBLY - road lamps, Includes: Ref. 1 - 20

1шт.

1

E20258

FLASHER SWITCH

SWITCH - hazard warning, Includes: Ref. 2 - 4

1шт.

2

1094378R1

BULB,J, 12V, 2W

- hazard switch, was E61396

1шт.

3

223-41

FUSE,35A

1шт.

4

E20439

FLASHER UNIT

FLASHER - hazard switch

1шт.

5

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

- pan head cross slotted, No. 8-32 x 5/8 inch

5шт.

6

495-21019

WASHER,#8

5шт.

7

225-14108

NUT,#8-32

- hex, No. 8 NC

4шт.

8

D74330

SWITCH

- lamp, Includes: Ref. 9

1шт.

9

N7557

NUT

- lamp switch

1шт.

10

D95781

BUTTON

KNOB - lamp switch

1шт.

11

E20439

FLASHER UNIT

FLASHER - directional

1шт.

12

H439316

STRIP

- adhesive, double backed, 1.5 x 1 inch

1шт.

13

E99177

ELECTRICAL WIRE

WIRE - lamp switch to junction box

1шт.

14

E99229

ELECTRICAL WIRE

WIRE - ground to junction box

1шт.

15

E99309

ELECTRICAL WIRE

WIRE - lamp switch to junction box

1шт.

16

E20123

ELECTRICAL WIRE

WIRE - directional flasher to junction box

1шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- No. 8 x 32

1шт.

18

E99239

JUNCTION BOX

BOX - junction, electrical

1шт.

19

223-95

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - electircal, female, straight

1шт.

20

H439162

COVER

HOUSING - switch assembly

1шт.
