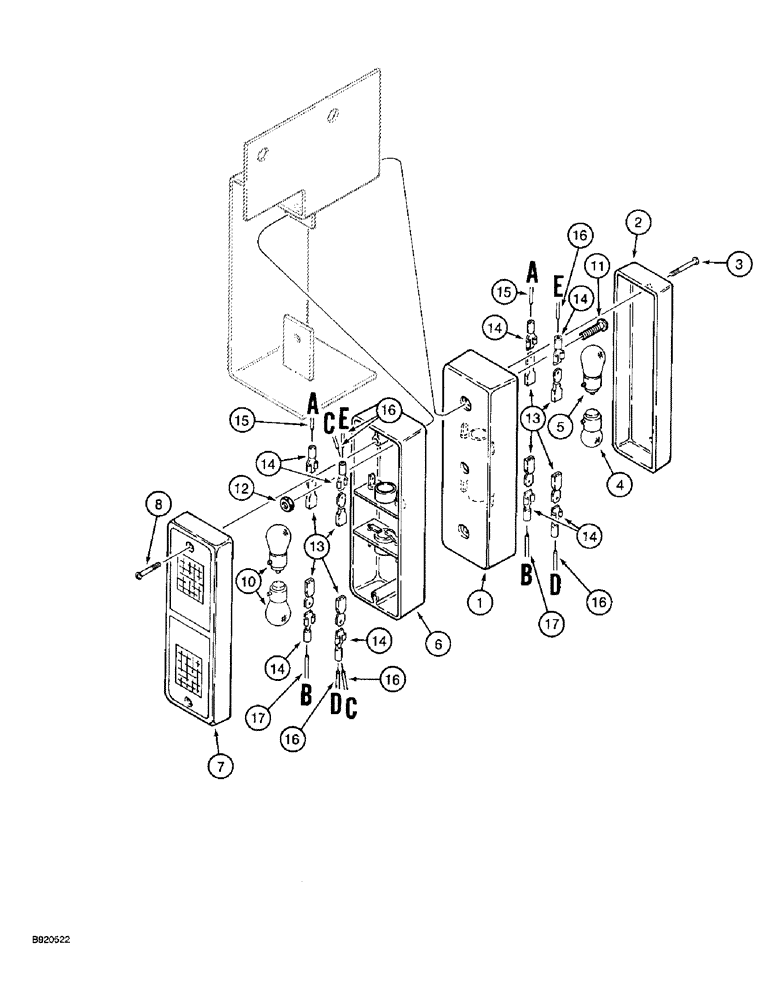

Запчасти Case IH 1825 (4-23E) - ROAD LAMP ASSEMBLIES, EUROPEAN MODELS (04) - ELECTRICAL SYSTEMS

E137163

LIGHT ASSY.

LAMP ASSEMBLY - front, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

110280A1

CAPPING

LENSE - lamp, amber/white

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - machine, 3.5 x 30 mm

2шт.

4

110279A1

BULB

- 5 watt

1шт.

5

110277A1

BULB

- 21 watt

1шт.

E137162

TAIL LAMP

LAMP ASSEMBLY - rear, Includes: Ref. 6 - 10

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

7

110276A1

REFLECTOR

LENSE - lamp, amber/red

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - machine, 3.5 x 30 mm

2шт.

10

110277A1

BULB

- 21 watt

2шт.

11

30464R1

SCREW,Cross Pan Hd, M5 x 25

- machine 5 mm x 25 mm long

4шт.

12

825-1405

NUT,M5, Cl 8

4шт.

13

102296A1

CONNECTION

CONNECTOR - electrical, 1/4 inch

8шт.

14

223-95

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - electrical, female, straight

8шт.

15

H439273

ELECTRICAL WIRE

WIRE - electrical, red

2шт.

16

H439272

ELECTRICAL WIRE

WIRE - electrical, black

6шт.

17

H439274

ELECTRICAL WIRE

WIRE - electrical, green

2шт.
