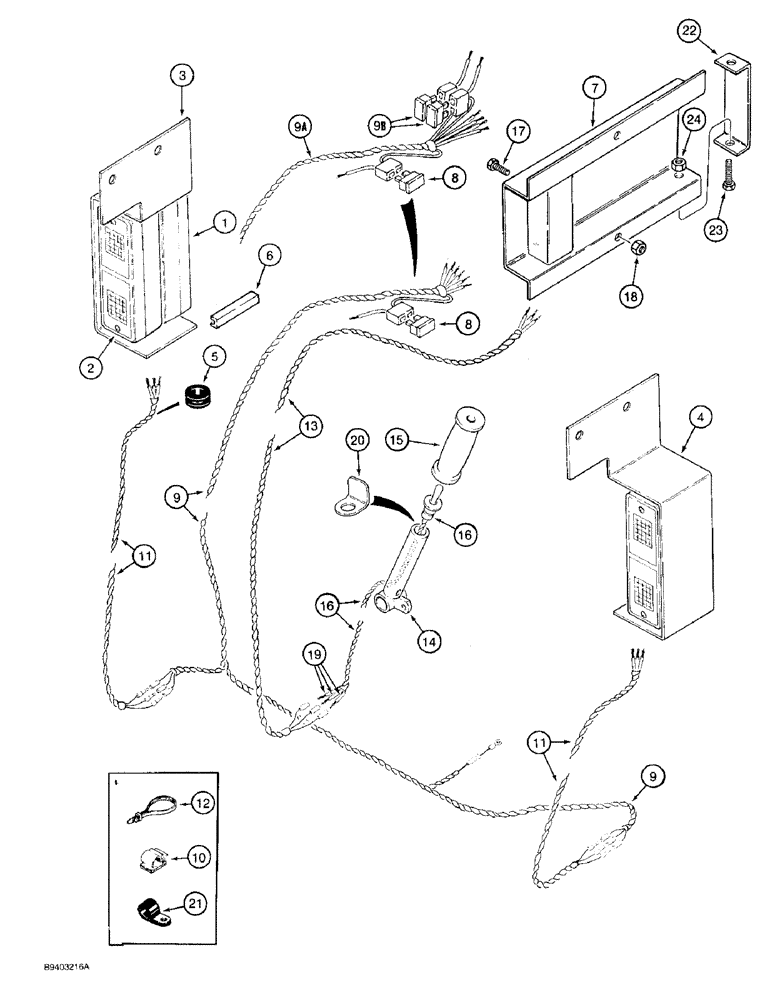

Запчасти Case IH 1825 (4-23C) - ROAD LAMPS AND WIRING, EUROPEAN MODELS, P.I.N. JAF0096608 AND AFTER (04) - ELECTRICAL SYSTEMS

1

E133215

TAIL LAMP

LAMP ASSEMBLY - front, parts list Fig. 4-23E, was E137163

2шт.

2

E137162

TAIL LAMP

LAMP ASSEMBLY - rear, parts list Fig. 4-23E, was E137164

2шт.

3

103372A1

SUPPORT

BRACKET - left lamp mounting

1шт.

4

103373A1

SUPPORT

BRACKET - right lamp mounting

1шт.

5

49566

GROMMET

- rubber

2шт.

6

D55218

SEAL, GLASS,76mm L

TRIM - edge, 3 inches (76 mm) long, lower edge of mounting brackets, cut from D33499 bulk trim, see below

2шт.

7

NSS

NOT SOLD SEPARAT

SWITCH ASSEMBLY - road lamps, parts list Fig. 4-23G

1шт.

8

A149802

FUSE

- 20 ampere (yellow, blade type)

1шт.

9

111125A1

HARNESS

- road lamps, center JAF0096608, Serial Range: -JAF0140357

1шт.

9a

141421A1

HARNESS

- road lamps, center JAF0140357 to

1шт.

9b

A149799

FUSE

- 7.5 ampere (brown, blade type) use with 141421A1 harness

2шт.

10

H439303

CLIP

- harness retaining

1шт.

11

111126A1

HARNESS

- road lamps, rear

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

116458A1

HARNESS

- road lamps, front

1шт.

14

103501A1

HANDLE

LEVER - control, loader

1шт.

15

D133282

HANDLE

GRIP - control lever

1шт.

16

101615A2

IGNITION SWITCH

SWITCH - direction indicator, includes wires

1шт.

17

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

- pan head cross slotted, No. 8-32 x 5/8 inch

2шт.

18

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

19

E20680

TERMINAL CONNECTOR,Male

TERMINAL - bullet, 4 mm dia. Male

3шт.

20

123676A1

SHIELD

GUARD - switch

1шт.

21

NLS

NO LONGER SERVICED

- harness, closed, 12.7 mm ID

1шт.

22

104823A1

COVER

- switch bracket

1шт.

23

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

24

825-1405

NUT,M5, Cl 8

2шт.

D33499

GASKET

TRIM - edge, bulk, 116 inches (2946 mm) long

1шт.
