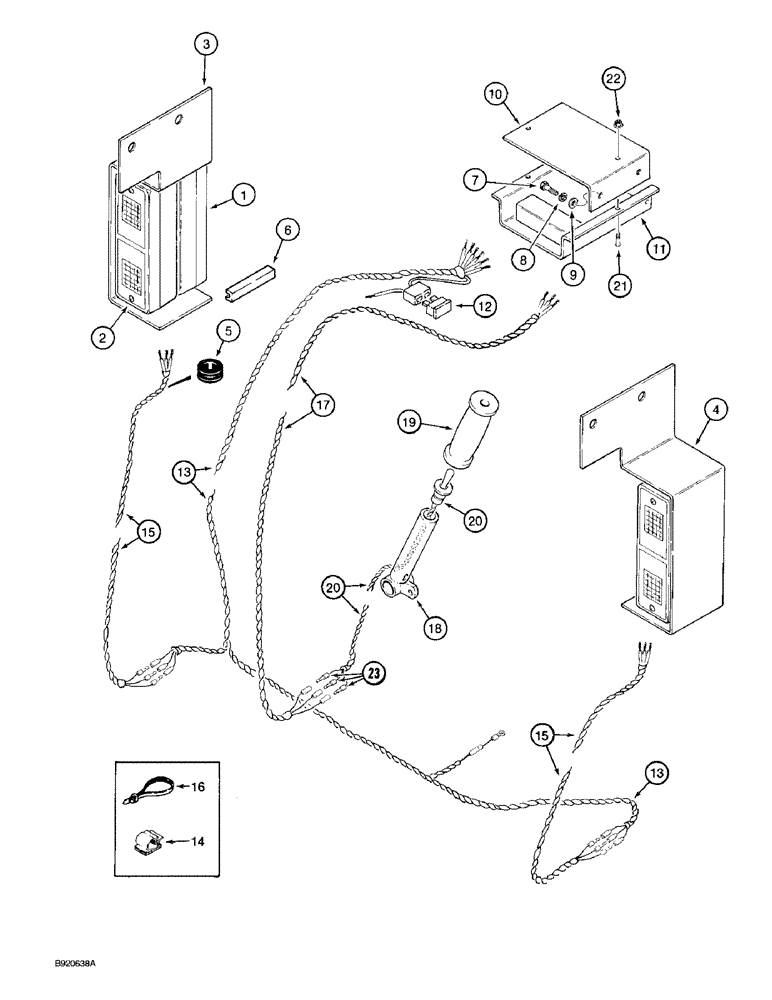

Запчасти Case IH 1825 (4-23A) - ROAD LAMPS AND WIRING, EUROPEAN MODELS, PRIOR TO P.I.N. JAF0096608 (04) - ELECTRICAL SYSTEMS

1

E137163

LIGHT ASSY.

LAMP ASSEMBLY - front, parts list Fig. 4-23E

2шт.

2

E137162

TAIL LAMP

LAMP ASSEMBLY - rear, parts list Fig. 4-23E

2шт.

3

103372A1

SUPPORT

BRACKET - left lamp mounting

1шт.

4

103373A1

SUPPORT

BRACKET - right lamp mounting

1шт.

5

49566

GROMMET

- rubber

2шт.

6

D55218

SEAL, GLASS,76mm L

TRIM - edge, 3 inches (76 mm) long, lower edge of mounting brackets, cut from D33499 bulk trim, see below

2шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

104821A1

ADAPTER

BRACKET - road lamp switch

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH ASSEMBLY - road lamps, parts list Fig. 4-23G

1шт.

12

A149800

FUSE,10 Amp

- 10 ampere (red, blade type)

1шт.

13

103403A1

HARNESS

- road lamps, center

1шт.

14

H439303

CLIP

- harness retaining

1шт.

15

H439318

HARNESS

- road lamps, rear

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

103761A1

HARNESS

- road lamps, front

1шт.

18

103501A1

HANDLE

LEVER - control, loader

1шт.

19

D133282

HANDLE

GRIP - control lever

1шт.

20

101615A1

PRESSURE SWITCH

SWITCH - direction indicator, includes wires

1шт.

21

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

- pan head cross slotted, No. 8-32 x 5/8 inch

2шт.

22

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

23

E20680

TERMINAL CONNECTOR,Male

TERMINAL - bullet, 4 mm dia. Male

3шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inches (2946 mm) long

1шт.
