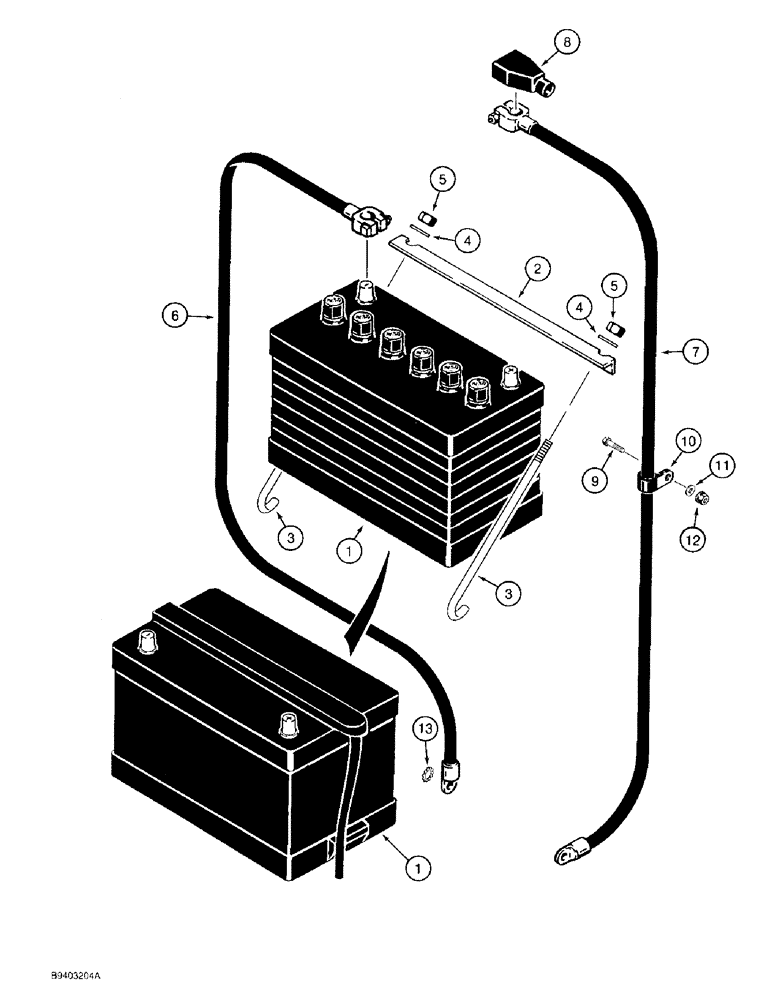

Запчасти Case IH 1825 (4-20) - BATTERY AND CABLES, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

120210A1

BATTERY

- wet, 12 volt, was B2472

1шт.

2

D59706

ANGLE

- battery hold down

1шт.

3

H436311

BOLT

- J-type, battery hold down (replaces H438508)

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

D136983

CABLE

- battery, negative

1шт.

7

D136982

CABLE

- battery, positive, Includes: Ref. 8

1шт.

8

383619R1

COVER

BOOT - positive battery cable, was A27072

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

10

S77322

CLAMP

- harness, was 49838

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

1шт.

13

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - lock, 3/8 inch, external shakeproof

1шт.
